Super Stockists

Shr Flr SB 1g 10/16A German Unswt Skt WH

SKU: 82D6126W Category:
Shr Flr SB 1g 10/16A German Unswt Skt WH
Shr Flr SB 1g 10/16A German Unswt Skt WH - Image 2
SKU: 82D6126W Category:

Type

1 gang 10/16A 220/250V AC German Unswitched Socket

Plate Finish

Satin Brass

Insert Finish

White

Description

Sheer Floor Satin Brass 1 gang 10/16A 220/250V AC German Unswitched Socket White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer Floor Sockets
Page-Sort-Order

018-999-
Insert-Type

1 gang 10/16A 220/250V AC German Unswitched Socket
Insert-Colour

White
Uf-ItmLabelTechInsert

6126
Uf-HAM-Plate-Range

Sheer Floor Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer Floor Sockets
Item-Long-Description

Sheer Floor Satin Brass 1 gang 10/16A 220/250V AC German Unswitched Socket White
PlateFinish

Sheer Floor Box Satin Brass
EAN13-Barcode

5028690040088
Dimensions(Nominal)

Single: Height = 93.5mm Width = 85.5mm Depth = 3.0mm (6.5mm Hinged Cover)
Current-Rating

10/16 Amp
Commodity-Code

85363010

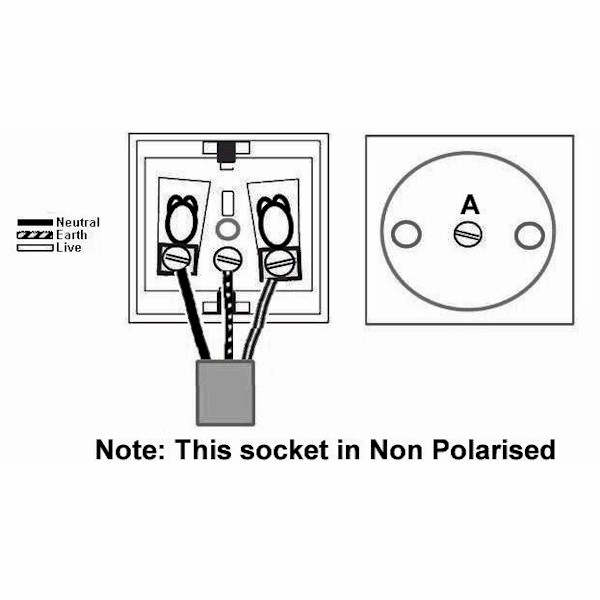

Wiring-Image

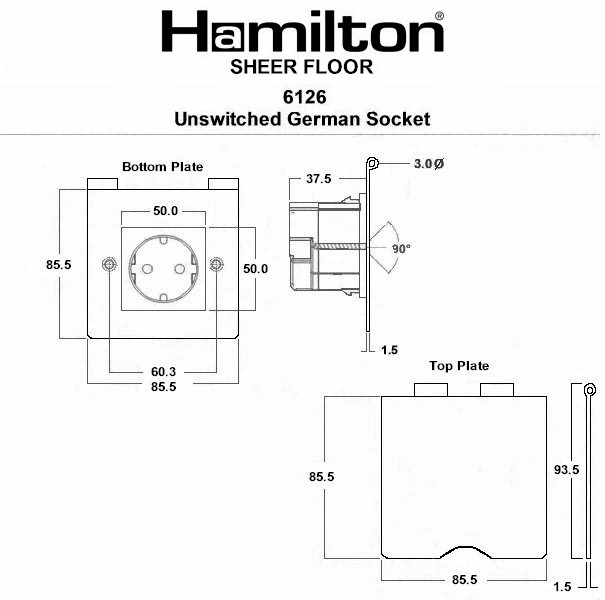

Dimension-Image

Luckins-TSI

387371481
Tech-Sheet-Page-Footer

82D6126W – Sheer Floor Satin Brass 1 gang 10/16A 220/250V AC German Unswitched Socket White
product-code

S SHR 82D
family-code

S SHR FLR
last-inv

06/04/2014
unit-weight

222.00000
weight-units

GR
Uf-LuckinsEDP

4533138432
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

18
HAM-SortOrder

999
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

German Socket
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

23/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

47mm
Plate-Finish

Satin Brass
Subheader2

Sheer Floor Sockets
Weight

222 GR
description

Shr Flr SB 1g 10/16A German Unswt Skt WH
Height

93.5mm
Width

85.5mm
Depth

3.0mm (6.5mm Hinged Cover)

Download datasheet
