Shr Flr BC 4 Euro Apert 100X50+Grid

SKU: 87DEURO4 Category:
Shr Flr BC 4 Euro Apert 100X50+Grid
Shr Flr BC 4 Euro Apert 100X50+Grid - Image 2
SKU: 87DEURO4 Category:

Type

4 gang EuroFix 100x50mm Apertured Plate with Grid

Plate Finish

Bright Chrome

Insert Finish

N/A

Description

Sheer Floor EuroFix Bright Chrome Double Floor Plate complete with 4 EuroFix Apertures 100x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer Floor Sockets
Page-Sort-Order

018-046-004
Insert-Type

4 gang EuroFix 100x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO4
Uf-HAM-Plate-Range

Sheer Floor EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer Floor Sockets
Item-Long-Description

Sheer Floor EuroFix Bright Chrome Double Floor Plate complete with 4 EuroFix Apertures 100x50mm and Grid
PlateFinish

Sheer Floor EuroFix Bright Chrome
EAN13-Barcode

5017504067731

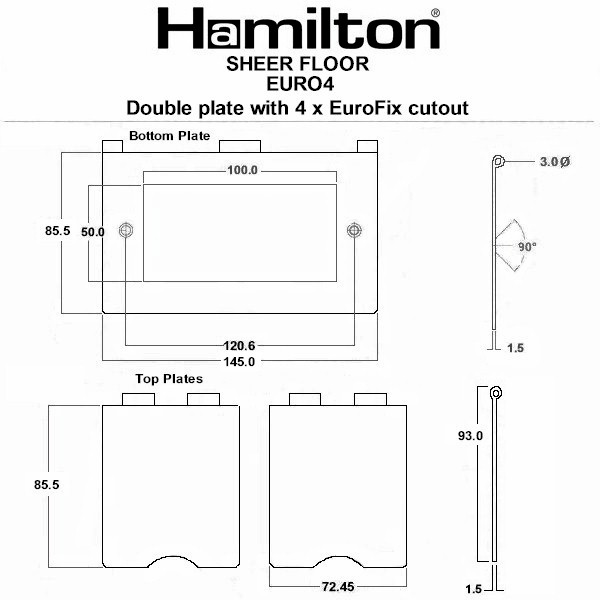

Dimensions(Nominal)

Double: Height = 93mm Width = 145mm Depth = 3.0mm (6.5mm Hinged Cover)
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

83024190
Dimension-Image

Luckins-TSI

398355603
Tech-Sheet-Page-Footer

87DEURO4 – Sheer Floor EuroFix Bright Chrome Double Floor Plate complete with 4 EuroFix Apertures 100x50mm and Grid
product-code

S SHR 87D
family-code

S SHR FLR
last-inv

12/06/2021
unit-weight

341.60000
weight-units

GR
Uf-LuckinsEDP

4533329306
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

18
HAM-SortOrder

46
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

4
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

02/10/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

As Per Inserts
Weight

342 GR
Voltage

Insert Specific
IP-Rating

IPXXB
description

Shr Flr BC 4 Euro Apert 100X50+Grid
Height

93mm
Width

145mm
Depth

3.0mm (6.5mm Hinged Cover)
Plate-Finish

Bright Chrome
Subheader2

Sheer Floor Sockets Eurofix
