Shr Flr AB 3 Euro Apert 75X50+Grid

SKU: 89DEURO3 Category:
Shr Flr AB 3 Euro Apert 75X50+Grid
Shr Flr AB 3 Euro Apert 75X50+Grid - Image 2
SKU: 89DEURO3 Category:

Type

3 gang EuroFix 75x50mm Apertured Plate with Grid

Plate Finish

Antique Brass

Insert Finish

N/A

Description

Sheer Floor EuroFix Antique Brass Double Floor Plate complete with 3 EuroFix Apertures 75x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer Floor Sockets
Page-Sort-Order

018-046-003
Insert-Type

3 gang EuroFix 75x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO3
Uf-HAM-Plate-Range

Sheer Floor EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer Floor Sockets
Item-Long-Description

Sheer Floor EuroFix Antique Brass Double Floor Plate complete with 3 EuroFix Apertures 75x50mm and Grid
PlateFinish

Sheer Floor EuroFix Antique Brass
EAN13-Barcode

5017504067762
Dimensions(Nominal)

Double: Height = 93mm Width = 145mm Depth = 3.0mm (6.5mm Hinged Cover)
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

83024190

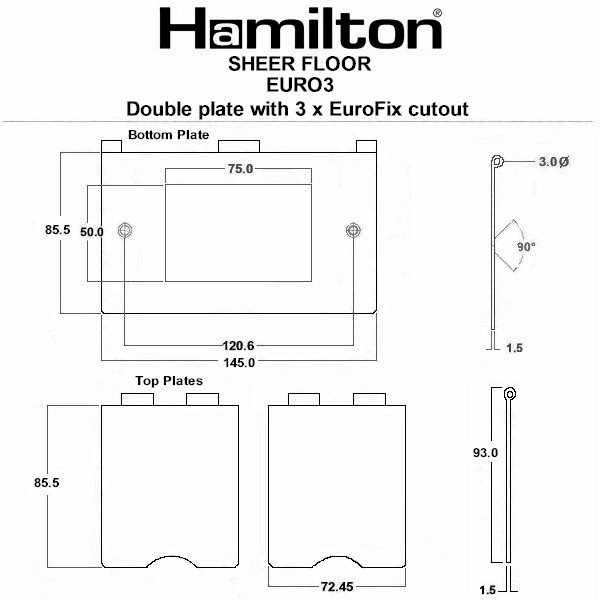

Dimension-Image

Luckins-TSI

402448901
Tech-Sheet-Page-Footer

89DEURO3 – Sheer Floor EuroFix Antique Brass Double Floor Plate complete with 3 EuroFix Apertures 75x50mm and Grid
product-code

S SHR 89D
family-code

S SHR FLR
last-inv

21/03/2025
unit-weight

353.00000
weight-units

GR
Uf-LuckinsEDP

4533378412
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

18
HAM-SortOrder

46
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

3
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

02/10/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm
Minimum-Wall-Box-Depth

As Per Inserts
Weight

353 GR
Voltage

Insert Specific
IP-Rating

IPXXB
description

Shr Flr AB 3 Euro Apert 75X50+Grid
Height

93mm
Width

145mm
Depth

3.0mm (6.5mm Hinged Cover)
Plate-Finish

Antique Brass
Subheader2

Sheer Floor Sockets Eurofix
