Shr Flr AB 1 Euro Apert 25X50+Grid

SKU: 89DEURO1 Category:
Shr Flr AB 1 Euro Apert 25X50+Grid
Shr Flr AB 1 Euro Apert 25X50+Grid - Image 2
SKU: 89DEURO1 Category:

Type

1 gang EuroFix 25x50mm Apertured Plate with Grid

Plate Finish

Antique Brass

Insert Finish

N/A

Description

Sheer Floor EuroFix Antique Brass Single Floor Plate complete with 1 EuroFix Aperture 25x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer Floor Sockets
Page-Sort-Order

018-046-001
Insert-Type

1 gang EuroFix 25x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO1
Uf-HAM-Plate-Range

Sheer Floor EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer Floor Sockets
Item-Long-Description

Sheer Floor EuroFix Antique Brass Single Floor Plate complete with 1 EuroFix Aperture 25x50mm and Grid
PlateFinish

Sheer Floor EuroFix Antique Brass
EAN13-Barcode

5017504067748
Dimensions(Nominal)

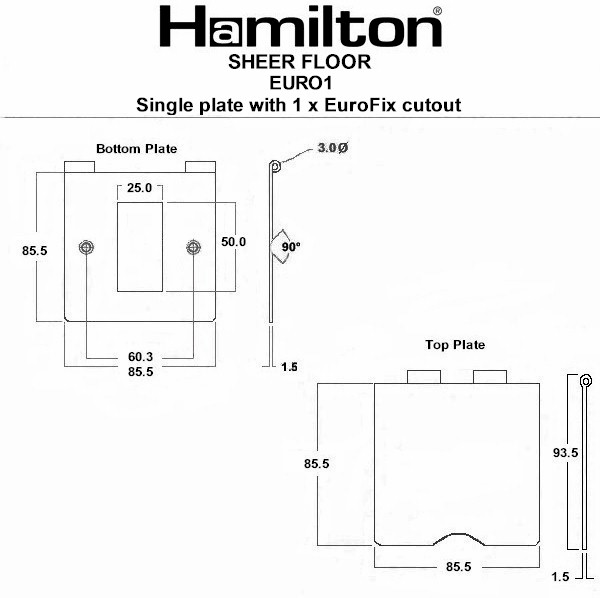

Single: Height = 93.5mm Width = 85.5mm Depth = 3.0mm (6.5mm Hinged Cover)
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

83024190
Dimension-Image

Luckins-TSI

402448891
Tech-Sheet-Page-Footer

89DEURO1 – Sheer Floor EuroFix Antique Brass Single Floor Plate complete with 1 EuroFix Aperture 25x50mm and Grid
product-code

S SHR 89D
family-code

S SHR FLR
last-inv

12/08/2025
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533378409
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

18
HAM-SortOrder

46
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

1
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

02/10/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm
Minimum-Wall-Box-Depth

As Per Insert
Voltage

Insert Specific
IP-Rating

IPXXB
description

Shr Flr AB 1 Euro Apert 25X50+Grid
Height

93.5mm
Width

85.5mm
Depth

3.0mm (6.5mm Hinged Cover)
Plate-Finish

Antique Brass
Subheader2

Sheer Floor Sockets Eurofix
