Sher CFX PB DP SS2+USB+USB C PB/WH

SKU: 81CSS2USBCPBW Category:
Sher CFX PB DP SS2+USB+USB C PB/WH
Sher CFX PB DP SS2+USB+USB C PB/WH - Image 2
SKU: 81CSS2USBCPBW Category:

Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2x2.4A (4.8A Total)

Plate Finish

Polished Brass

Insert Finish

Polished Brass/White

Description

Sheer CFX Polished Brass 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Polished Brass/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-023-002
Insert-Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2×2.4A (4.8A Total)
Insert-Colour

Polished Brass/White
Uf-ItmLabelTechInsert

SS2USBC
Uf-HAM-Plate-Range

Sheer CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX Polished Brass 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Polished Brass/White
PlateFinish

Sheer CFX Polished Brass
EAN13-Barcode

5051164000400
Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 1.5mm plate + 3.0mm gasket
Commodity-Code

85366990

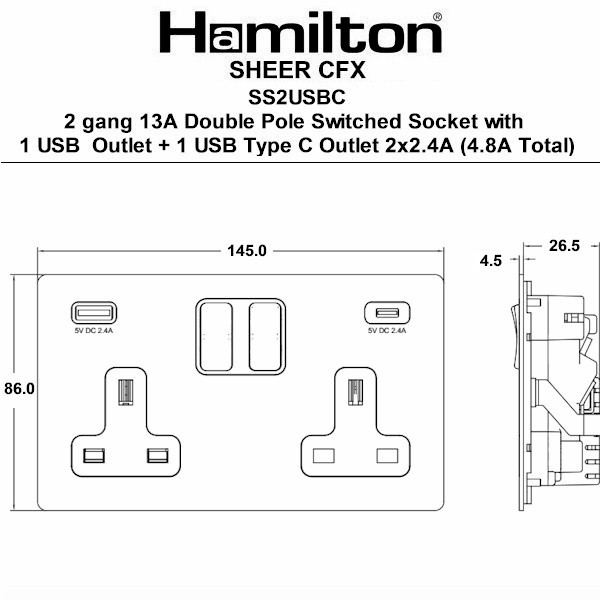

Dimension-Image

Luckins-TSI

407290769
Tech-Sheet-Page-Footer

81CSS2USBCPB-W – Sheer CFX Polished Brass 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Polished Brass/White
product-code

S SH-C PB
family-code

S SHR CFX
last-inv

13/10/2025
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533397008
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

17
HAM-SortOrder

23
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Polished Brass
TrimColour

White
Last-Updated-At-Hamilton

31/12/2025
Switched-Poles

Double
Current-Rating

13 Amp, 1 x 2.4A Type A + 1 x 2.4A Type C
Maximum-Load

13 Amp, USB TYPE A & C = 2.4A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368

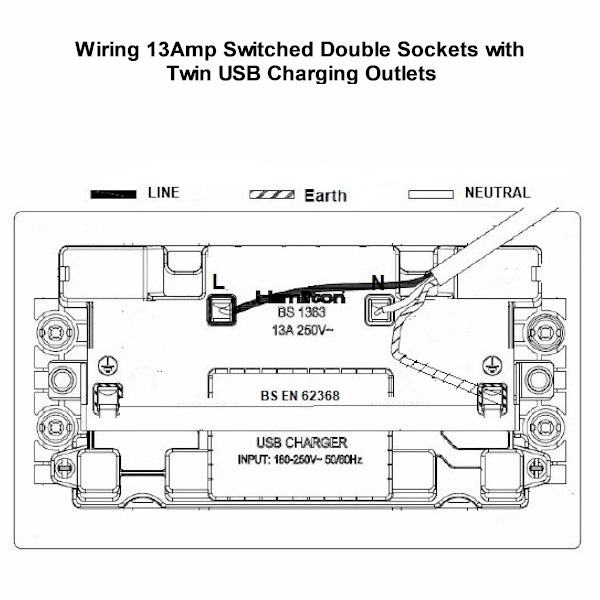

Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Voltage

180/250V AC USB TYPE A & C =5V
IP-Rating

IP2XD
description

Sher CFX PB DP SS2+USB+USB C PB/WH
Height

86.0mm
Width

145.0mm
Depth

1.5mm plate + 3.0mm gasket
Plate-Finish

Polished Brass
Subheader2

Sheer CFX USB Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1

Download datasheet
