Sher CFX BC DP SS2+USB+USB C BC/BL

SKU: 87CSS2USBCBCB Category:
Sher CFX BC DP SS2+USB+USB C BC/BL
Sher CFX BC DP SS2+USB+USB C BC/BL - Image 2
SKU: 87CSS2USBCBCB Category:

Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2x2.4A (4.8A Total)

Plate Finish

Bright Chrome

Insert Finish

Bright Chrome/Black

Description

Sheer CFX Bright Chrome 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Bright Chrome/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-023-002
Insert-Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2×2.4A (4.8A Total)
Insert-Colour

Bright Chrome/Black
Uf-ItmLabelTechInsert

SS2USBC
Uf-HAM-Plate-Range

Sheer CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX Bright Chrome 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Bright Chrome/Black
PlateFinish

Sheer CFX Bright Chrome
EAN13-Barcode

5051164000455

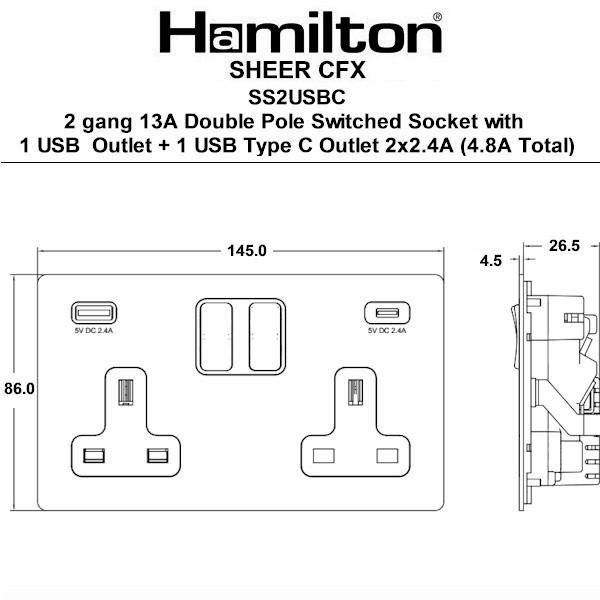

Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 1.5mm plate + 3.0mm gasket
Commodity-Code

85366990
Dimension-Image

Luckins-TSI

407290811
Tech-Sheet-Page-Footer

87CSS2USBCBC-B – Sheer CFX Bright Chrome 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Bright Chrome/Black
product-code

S SH-C BC
family-code

S SHR CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533397053
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

017
HAM-SortOrder

023
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Bright Chrome
TrimColour

Black
Last-Updated-At-Hamilton

03/02/26
Switched-Poles

Double
Current-Rating

13 Amp, 1 x 2.4A Type A + 1 x 2.4A Type C
Maximum-Load

13 Amp, USB TYPE A & C = 2.4A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368

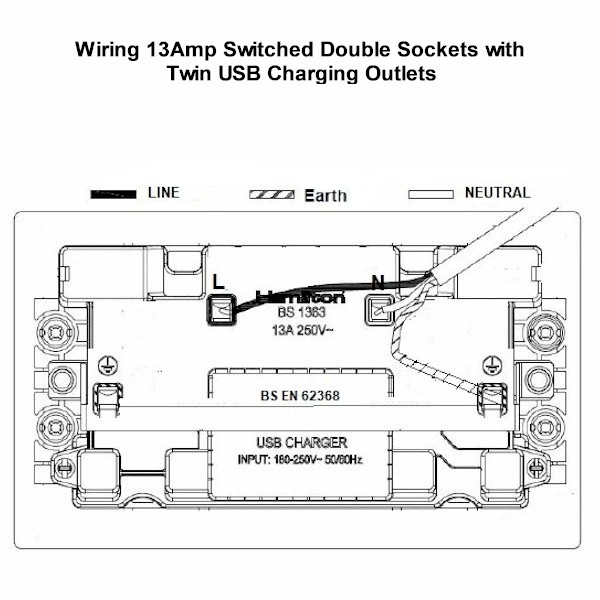

Wiring-Image

last-inv

03/02/26
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Voltage

180/250V AC USB TYPE A & C =5V
IP-Rating

IP2XD
description

Sher CFX BC DP SS2+USB+USB C BC/BL
Height

86.0mm
Width

145.0mm
Depth

1.5mm plate + 3.0mm gasket
Plate-Finish

Bright Chrome
Subheader2

Sheer CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
