Shr CFX SS 1g Telephone Slave WH

Shr CFX SS 1g Telephone Slave WH
Shr CFX SS 1g Telephone Slave WH - Image 2
Shr CFX SS 1g Telephone Slave WH - Image 3
Shr CFX SS 1g Telephone Slave WH - Image 4

Type

1 gang Telephone Slave

Plate Finish

Satin Steel

Insert Finish

White

Description

Sheer CFX Satin Steel 1 gang Telephone Slave White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-031-004
Insert-Type

1 gang Telephone Slave
Insert-Colour

White
Uf-ItmLabelTechInsert

TCS
Uf-HAM-Plate-Range

Sheer CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX Satin Steel 1 gang Telephone Slave White
PlateFinish

Sheer CFX Satin Steel
EAN13-Barcode

5017504030650

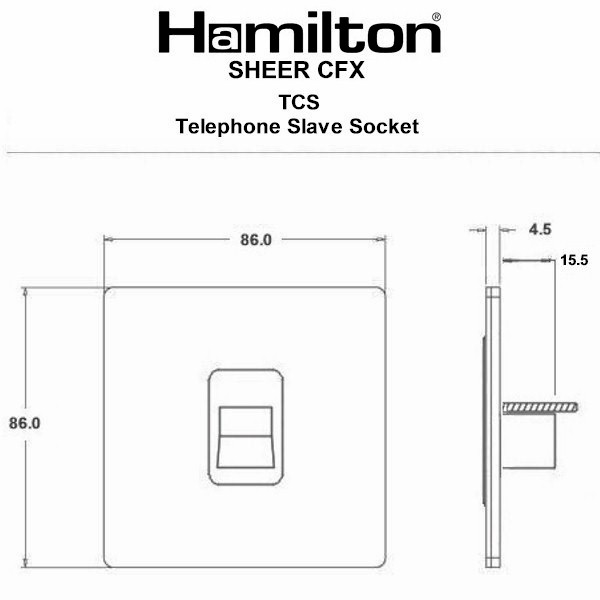

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

387376185
Tech-Sheet-Page-Footer

84CTCSW – Sheer CFX Satin Steel 1 gang Telephone Slave White
product-code

S SH-C SS
family-code

S SHR CFX
last-inv

19/09/2025
unit-weight

117.00000
weight-units

GR
Uf-LuckinsEDP

4533140718
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

17
HAM-SortOrder

31
InsertSortOrder

004
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Slave
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

03/02/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Weight

117 GR
IP-Rating

IP2XD
description

Sher CFX SS 1g Telephone Slave WH
Height

86.0mm
Width

86.0mm
Depth

1.5mm plate + 3.0mm gasket
Plate-Finish

Satin Steel
Subheader2

Sheer CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
