S-CFX BK 2g N-Isol TV+Sat 2in/2out BL

SKU: 88CTVSATB Category:

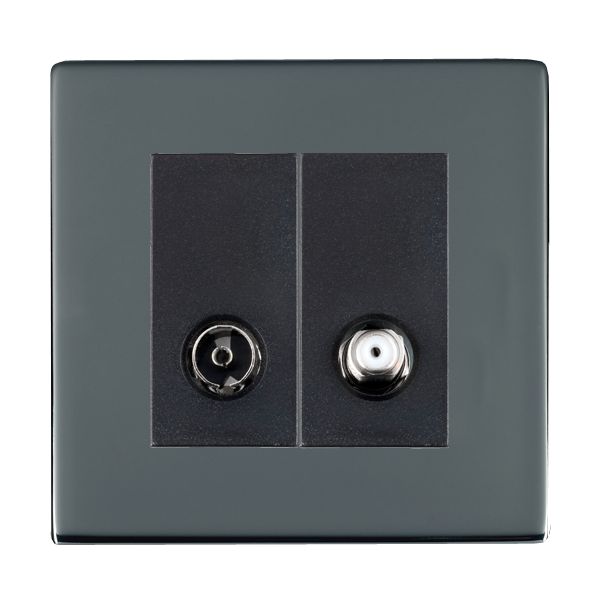

S-CFX BK 2g N-Isol TV+Sat 2in/2out BL
S-CFX BK 2g N-Isol TV+Sat 2in/2out BL - Image 2
S-CFX BK 2g N-Isol TV+Sat 2in/2out BL - Image 3
S-CFX BK 2g N-Isol TV+Sat 2in/2out BL - Image 4
SKU: 88CTVSATB Category:

Type

2 gang Non-Isolated TV+Satellite 2in/2out

Plate Finish

Black Nickel

Insert Finish

Black

Description

Sheer CFX Black Nickel 2 gang Non-Isolated TV+Satellite 2in/2out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-032-003
Insert-Type

2 gang Non-Isolated TV+Satellite 2in/2out
Insert-Colour

Black
Uf-ItmLabelTechInsert

TVSAT
Uf-HAM-Plate-Range

Sheer CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX Black Nickel 2 gang Non-Isolated TV+Satellite 2in/2out Black
PlateFinish

Sheer CFX Black Nickel
EAN13-Barcode

5017504051686

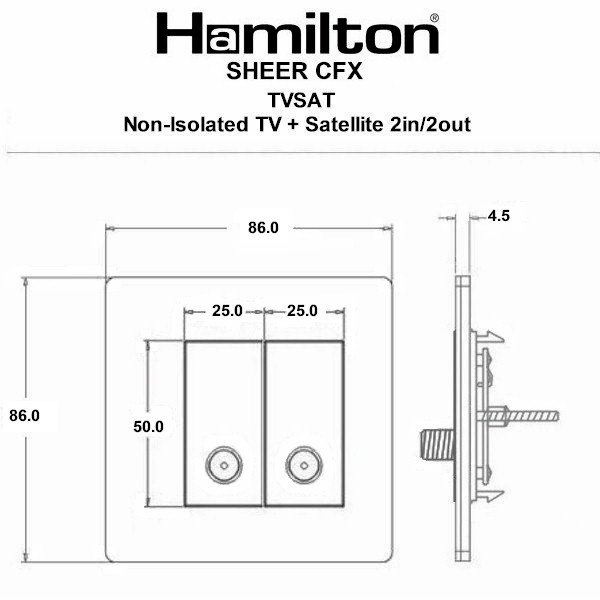

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

387384630
Tech-Sheet-Page-Footer

88CTVSATB – Sheer CFX Black Nickel 2 gang Non-Isolated TV+Satellite 2in/2out Black
product-code

S SH-C BK
family-code

S SHR CFX
last-inv

15/03/2018
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533143948
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

17
HAM-SortOrder

32
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV+Satellite Non-Isolated
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

13/02/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

S-CFX BK 2g N-Isol TV+Sat 2in/2out BL
Height

86.0mm
Width

86.0mm
Depth

1.5mm plate + 3.0mm gasket
Plate-Finish

Black Nickel
Subheader2

Sheer CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
