Super Stockists

Shr CFX PB 2g 20AX Inter Rkr PB/WH

Shr CFX PB 2g 20AX Inter Rkr PB/WH
Shr CFX PB 2g 20AX Inter Rkr PB/WH - Image 2
Shr CFX PB 2g 20AX Inter Rkr PB/WH - Image 3

Type

2 gang FL 20AX Intermediate Rocker

Plate Finish

Polished Brass

Insert Finish

Polished Brass/White

Description

Sheer CFX Polished Brass 2 gang 20AX Intermediate Rocker Polished Brass/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-001-032
Insert-Type

2 gang FL 20AX Intermediate Rocker
Insert-Colour

Polished Brass/White
Uf-ItmLabelTechInsert

R322-FL
Uf-HAM-Plate-Range

Sheer CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX Polished Brass 2 gang 20AX Intermediate Rocker Polished Brass/White
PlateFinish

Sheer CFX Polished Brass
EAN13-Barcode

5017504013356

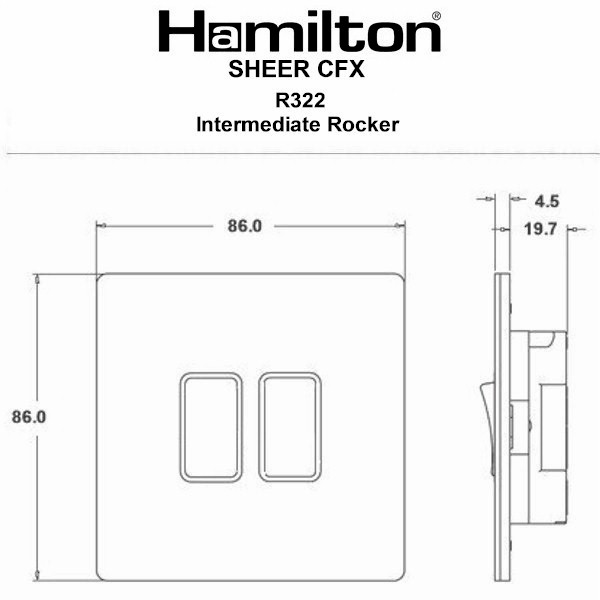

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

387365248
Tech-Sheet-Page-Footer

81CR322PB-W – Sheer CFX Polished Brass 2 gang 20AX Intermediate Rocker Polished Brass/White
product-code

S SH-C PB
family-code

S SHR CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533136492
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

017
HAM-SortOrder

001
InsertSortOrder

032
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Intermediate
WEB-NumberofGangs

2
MainInsertColour

Polished Brass
TrimColour

White
Last-Updated-At-Hamilton

27/02/26
Module-Size-Depth

23mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Polished Brass
Subheader2

Sheer CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
description

Sher CFX PB 2g 20AX Inter Rkr PB/WH
Height

86.0mm
Width

86.0mm
Depth

1.5mm plate + 3.0mm gasket

Download datasheet
