Shr CFX PN 1g 13A DP Swt Skt BC/WH

Shr CFX PN 1g 13A DP Swt Skt BC/WH
Shr CFX PN 1g 13A DP Swt Skt BC/WH - Image 2
Shr CFX PN 1g 13A DP Swt Skt BC/WH - Image 3

Type

1 gang 13A Double Pole Switched Socket

Plate Finish

Polished Nickel

Insert Finish

Bright Chrome/White

Description

Sheer CFX Polished Nickel 1 gang 13A Double Pole Switched Socket Bright Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-021-001
Insert-Type

1 gang 13A Double Pole Switched Socket
Insert-Colour

Bright Chrome/White
Uf-ItmLabelTechInsert

SS1
Uf-HAM-Plate-Range

Sheer CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX Polished Nickel 1 gang 13A Double Pole Switched Socket Bright Chrome/White
PlateFinish

Sheer CFX Polished Nickel
EAN13-Barcode

5017504077877
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Commodity-Code

85366990

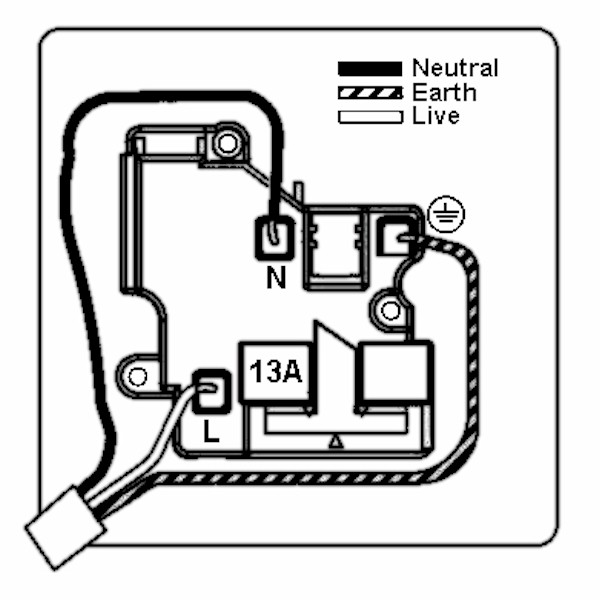

Wiring-Image

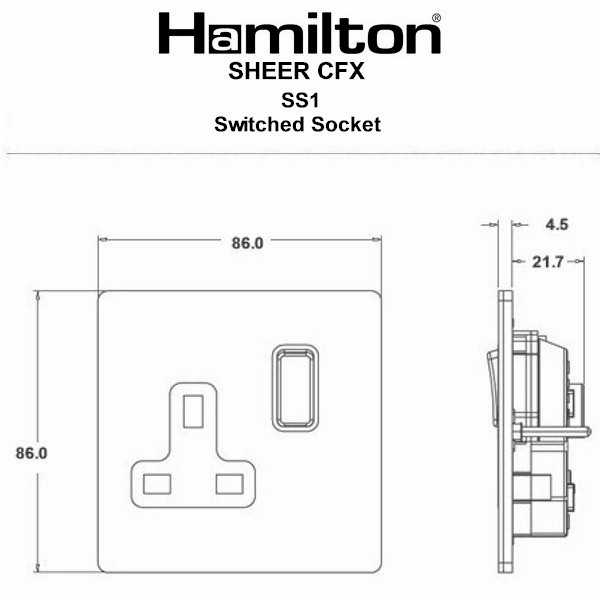

Dimension-Image

Luckins-TSI

402449638
Tech-Sheet-Page-Footer

8PNCSS1BC-W – Sheer CFX Polished Nickel 1 gang 13A Double Pole Switched Socket Bright Chrome/White
product-code

S SH-C PN
family-code

S SHR CFX
last-inv

20/03/2023
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533378768
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

17
HAM-SortOrder

21
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

1
MainInsertColour

Bright Chrome
TrimColour

White
Last-Updated-At-Hamilton

03/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Polished Nickel
Subheader2

Sheer CFX Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Sher CFX PN 1g 13A DP Swt Skt BC/WH
Height

86.0mm
Width

86.0mm
Depth

1.5mm plate + 3.0mm gasket

Download datasheet
