Shr CFX PB 1 Euro Apert 25×50+Grid

Shr CFX PB 1 Euro Apert 25x50+Grid
Shr CFX PB 1 Euro Apert 25x50+Grid - Image 2
Shr CFX PB 1 Euro Apert 25x50+Grid - Image 3

Type

1 gang EuroFix 25x50mm Apertured Plate with Grid

Plate Finish

Polished Brass

Insert Finish

N/A

Description

Sheer CFX EuroFix Polished Brass Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-046-001
Insert-Type

1 gang EuroFix 25x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO1
Uf-HAM-Plate-Range

Sheer CFX EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX EuroFix Polished Brass Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid
PlateFinish

Sheer CFX EuroFix Polished Brass
EAN13-Barcode

5017504019167

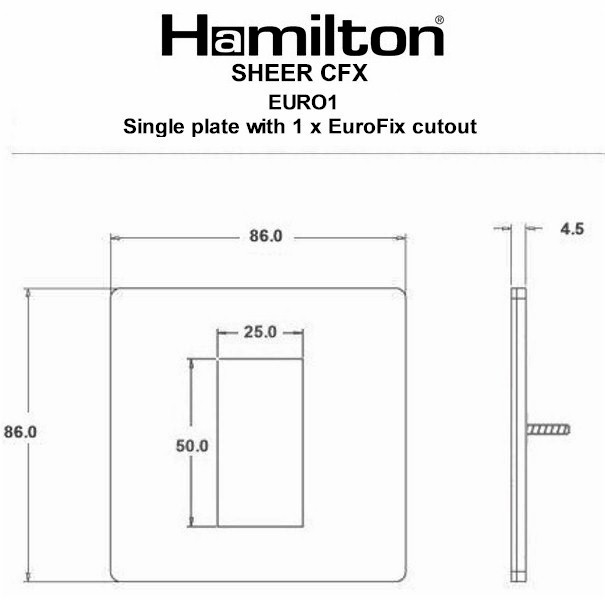

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

74198090
Item-Image

Dimension-Image

Luckins-TSI

391561504
Tech-Sheet-Page-Footer

81CEURO1 – Sheer CFX EuroFix Polished Brass Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid
product-code

S Efix 81C
family-code

S SHR CFX
last-inv

02/07/24
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533192216
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

017
HAM-SortOrder

046
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

1
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

27/02/26
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

As Per Insert
Voltage

Insert Specific
IP-Rating

IPXXB
description

Sher CFX PB 1 Euro Apert 25×50+Grid
Height

86.0mm
Width

86.0mm
Depth

1.5mm plate + 3.0mm gasket
Plate-Finish

Polished Brass
Subheader2

Sheer CFX Range
