Description

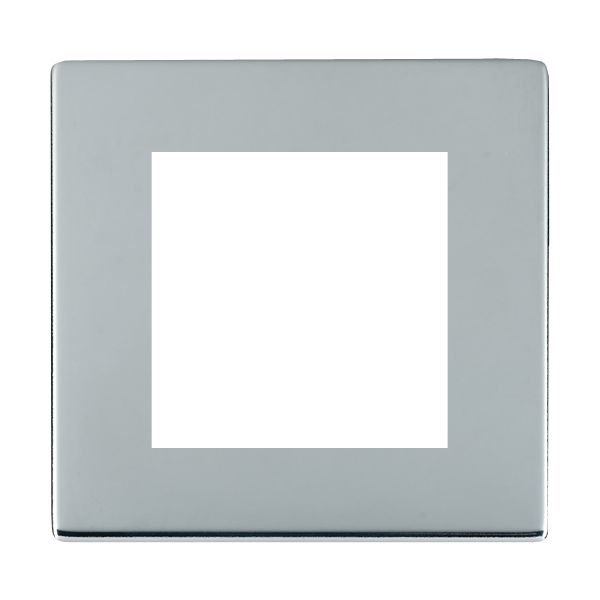

Sheer CFX EuroFix Bright Chrome Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid
SKU: 87CEURO2
Category: Sheer CFX Eurofix
Type
2 gang EuroFix 50x50mm Apertured Plate with GridPlate Finish
Bright ChromeInsert Finish
N/AAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Sheer CFX |
| Page-Sort-Order | 017-046-002 |
| Insert-Type | 2 gang EuroFix 50x50mm Apertured Plate with Grid |
| Insert-Colour | N/A |
| Uf-ItmLabelTechInsert | EURO2 |
| Uf-HAM-Plate-Range | Sheer CFX EuroFix |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006. |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755 |
| Item-Long-Description | Sheer CFX EuroFix Bright Chrome Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid |
| PlateFinish | Sheer CFX EuroFix Bright Chrome |
| EAN13-Barcode | 5017504049171 |

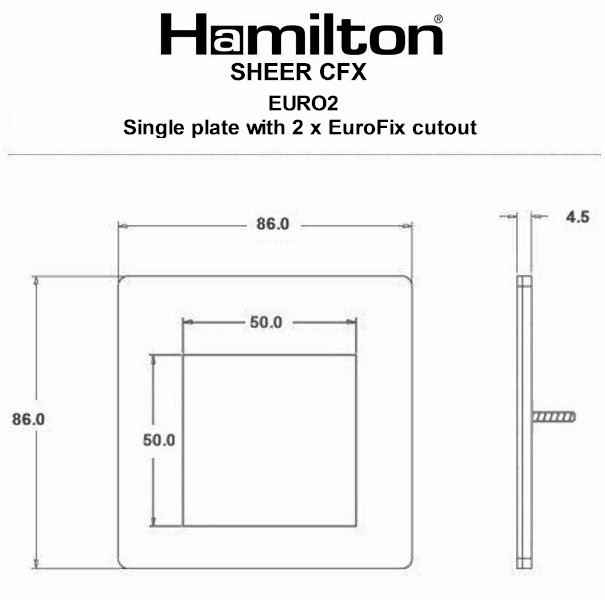

| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket |
| Switched-Poles | N/A |
| Contact-Gap-Minimum | N/A |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | N/A |
| Additional-Notes | See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag. |
| Commodity-Code | 74198090 |
| Item-Image | 87CEURO2.jpg |
| Dimension-Image | TD-8CEURO2.jpg |
| Luckins-TSI | 391562927 |
| Tech-Sheet-Page-Footer | 87CEURO2 – Sheer CFX EuroFix Bright Chrome Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid |
| product-code | S EFix 87C |
| family-code | S SHR CFX |
| last-inv | 07/09/2025 |
| unit-weight | 79.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533193613 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 17 |
| HAM-SortOrder | 46 |
| InsertSortOrder | 002 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Bright Chrome |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Plate |
| WEB-NumberofGangs | 2 |
| MainInsertColour | N |
| TrimColour | A |
| Last-Updated-At-Hamilton | 03/02/2026 |
| Current-Rating | Insert Specific |
| Maximum-Load | Insert Specific |
| Wiring-Image | WD-NONE.jpg |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | As Per Inserts |
| Weight | 79 GR |
| Voltage | Insert Specific |
| IP-Rating | IPXXB |
| description | Sher CFX BC 2 Euro Apert 50X50+Grid |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 1.5mm plate + 3.0mm gasket |
| Plate-Finish | Bright Chrome |
| Subheader2 | Sheer CFX Eurofix |
