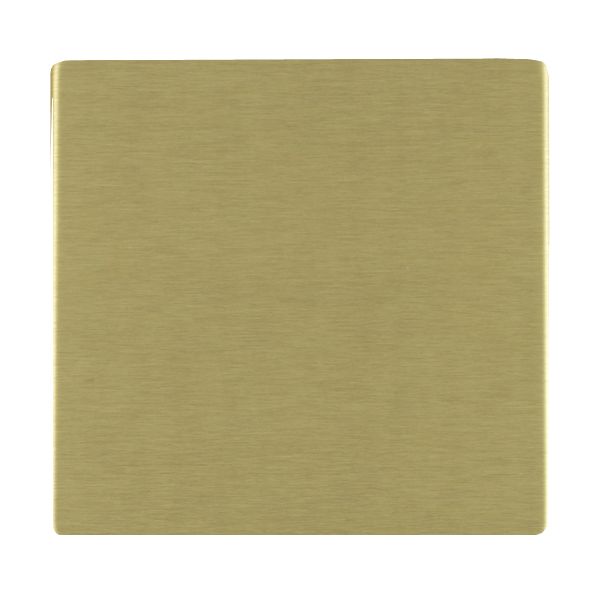

Sher CFX SB Single Blank Plate

SKU: 82CBPS Category:
Sher CFX SB Single Blank Plate
SKU: 82CBPS Category:

Type

Single Blank Plate

Plate Finish

Satin Brass

Insert Finish

N/A

Description

Sheer CFX Satin Brass Single Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-036-001
Insert-Type

Single Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPS
Uf-HAM-Plate-Range

Sheer CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX Satin Brass Single Blank Plate
PlateFinish

Sheer CFX Satin Brass
EAN13-Barcode

5017504029883
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

74198090
Item-Image

Dimension-Image

Luckins-TSI

387369875
Tech-Sheet-Page-Footer

82CBPS – Sheer CFX Satin Brass Single Blank Plate
product-code

S SH-C SB
family-code

S SHR CFX
last-inv

27/01/2026
unit-weight

155.00000
weight-units

GR
Uf-LuckinsEDP

4533137501
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

17
HAM-SortOrder

36
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Single Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

27/01/2026
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Satin Brass
Subheader2

Sheer CFX Blank Plates
Weight

155 GR
IP-Rating

IP2XB
description

Sher CFX SB Single Blank Plate
Height

86.0mm
Width

86.0mm
Depth

1.5mm plate + 3.0mm gasket
