Sher CFX BC Double Blank Plate

SKU: 87CBPD Category:

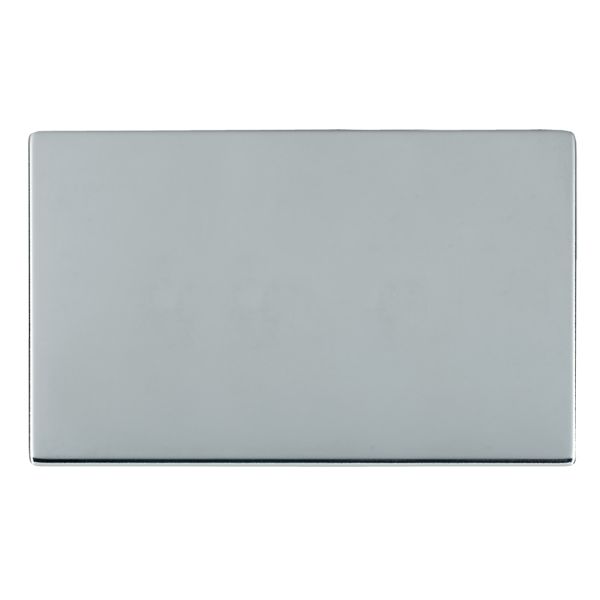

Sher CFX BC Double Blank Plate
SKU: 87CBPD Category:

Type

Double Blank Plate

Plate Finish

Bright Chrome

Insert Finish

N/A

Description

Sheer CFX Bright Chrome Double Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Sheer CFX
Page-Sort-Order

017-036-002
Insert-Type

Double Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPD
Uf-HAM-Plate-Range

Sheer CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006.
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755
Item-Long-Description

Sheer CFX Bright Chrome Double Blank Plate
PlateFinish

Sheer CFX Bright Chrome
EAN13-Barcode

5017504049898
Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 1.5mm plate + 3.0mm gasket
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

73269098
Item-Image

Dimension-Image

Luckins-TSI

387379823
Tech-Sheet-Page-Footer

87CBPD – Sheer CFX Bright Chrome Double Blank Plate
product-code

S SH-C BC
family-code

S SHR CFX
last-inv

19/11/2025
unit-weight

261.00000
weight-units

GR
Uf-LuckinsEDP

4533142046
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

17
HAM-SortOrder

36
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Double Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

31/12/2025
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Bright Chrome
Subheader2

Sheer CFX Blank Plates
Weight

261 GR
IP-Rating

IP2XB
description

Sher CFX BC Double Blank Plate
Height

86.0mm
Width

145.0mm
Depth

1.5mm plate + 3.0mm gasket
