Perception CFX Clear 2 gang RJ12 Outlet – Unshielded White
Percept 2g RJ12 Unshielded WH
SKU: PC2J12W
Category: Perception CFX - on Transparent Plates Television / Data
SKU: PC2J12W
Category: Perception CFX - on Transparent Plates Television / Data
Type
2 gang RJ12 Outlet - UnshieldedPlate Finish
ClearInsert Finish
WhiteAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Perception CFX – on Transparent Plates |
| Page-Sort-Order | 007-033-012 |
| Insert-Type | 2 gang RJ12 Outlet – Unshielded |
| Insert-Colour | White |
| Uf-ItmLabelTechInsert | 2J12 |
| Uf-HAM-Plate-Range | Perception CFX |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Perception CFX – on Transparent Plates |
| Patents-And-Trade-Marks | Perception is a Registered Trade Mark No 2560269 CFX is a Registered Trade Mark No 2398667 |
| Item-Long-Description | Perception CFX Clear 2 gang RJ12 Outlet – Unshielded White |
| PlateFinish | Perception CFX Clear |
| EAN13-Barcode | 5017504019488 |

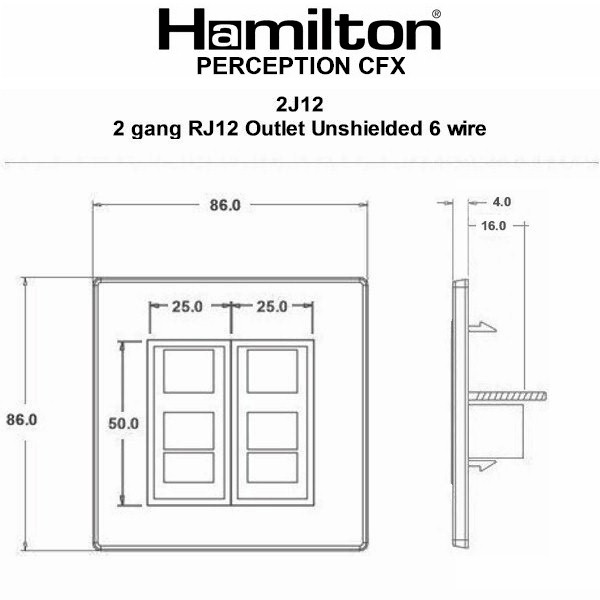

| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm |
| Switched-Poles | N/A |
| Contact-Gap-Minimum | N/A |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4 x 1.5mm2 |
| Earth-Terminal-Capacity-3 | 3 x 2.5mm2 |
| Earth-Terminal-Capacity-4 | 1 x 4mm2 Multi-strand |
| Earth-Terminal-Capacity-5 | 1 x 6mm2 |
| Product-Class-1 | Must be earthed (ref BS7671 415.2.1) |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | N/A |
| EuroFix-Additional-Notes | Can be used as either RJ11 (4 wires) or RJ12 (6 wires) |
| Commodity-Code | 85176990 |
| Wiring-Image | WDRJ12.jpg |
| Item-Image | PC2J12W.jpg |
| Dimension-Image | TD-PC2J12.jpg |
| Luckins-TSI | 394058849 |
| Tech-Sheet-Page-Footer | PC2J12W – Perception CFX Clear 2 gang RJ12 Outlet – Unshielded White |
| product-code | S PC WHITE |
| family-code | S PERCEP |
| last-inv | 03/06/2019 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533303351 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 7 |
| HAM-SortOrder | 33 |
| InsertSortOrder | 012 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Push |
| Uf-HAMPlateFinish | Clear |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | RJ12 – Unshielded |
| WEB-NumberofGangs | 2 |
| MainInsertColour | White |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 21/01/2026 |
| Current-Rating | n/a |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Push |
| Minimum-Wall-Box-Depth | 35mm |
| IP-Rating | IP2XD |
| description | Percept 2g RJ12 Unshielded WH |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 4.0mm |
| Plate-Finish | Clear |
| Subheader2 | Perception CFX – on Transparent Plates Television / Data |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bfyq/#p=1 |
