Percept 10A (6AX) Card Swt BK/BL

Percept 10A (6AX) Card Swt BK/BL
Percept 10A (6AX) Card Swt BK/BL - Image 2
Percept 10A (6AX) Card Swt BK/BL - Image 3
Percept 10A (6AX) Card Swt BK/BL - Image 4

Type

1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator

Plate Finish

Clear

Insert Finish

Black Nickel/Black

Description

Perception CFX Clear 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Black Nickel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Perception CFX – on Transparent Plates
Page-Sort-Order

007-038-001
Insert-Type

1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator
Insert-Colour

Black Nickel/Black
Uf-ItmLabelTechInsert

C11
Uf-HAM-Plate-Range

Perception CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Perception CFX – on Transparent Plates
Patents-And-Trade-Marks

Perception is a Registered Trade Mark No 2560269 CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Perception CFX Clear 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Black Nickel/Black
PlateFinish

Perception CFX Clear
EAN13-Barcode

5017504021191
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm
Switched-Poles

Single
Current-Rating

10A (6AX)
Maximum-Load

10 Amp (6 Amp inductive)
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x1mm²
Terminal-Capacity-2

2×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-3
Additional-Notes

Adjustable Time Delay 10 seconds – 5 minutes. Suitable for 44mm and 54mm width Hotel Key Cards
Commodity-Code

85363010
Wiring-Image

Item-Image

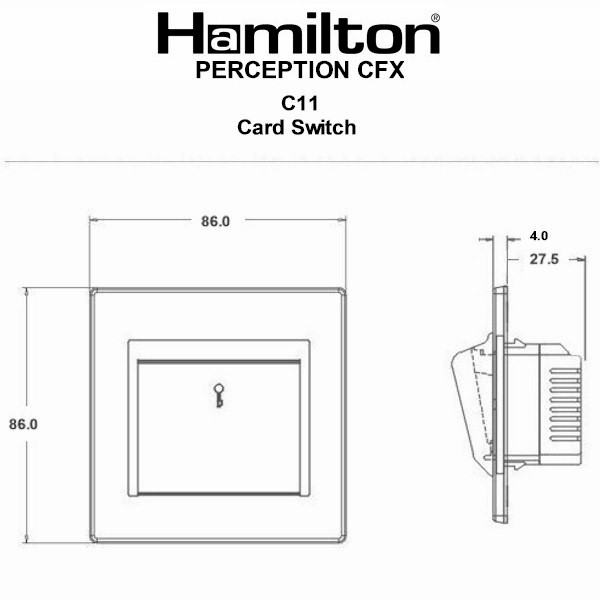

Dimension-Image

Luckins-TSI

394057002
Tech-Sheet-Page-Footer

PCC11BK-B – Perception CFX Clear 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Black Nickel/Black
product-code

S PC BK-BL
family-code

S PERCEP
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533301515
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

7
HAM-SortOrder

38
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Clear
Uf-HAMFrameFinish

n/a
WEB-InsertType

Key Card
WEB-NumberofGangs

1
MainInsertColour

Black Nickel
TrimColour

Black
Last-Updated-At-Hamilton

03/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Clear
Subheader2

Perception CFX – on Transparent Plates Key Card Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/mmdg/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
Height

86.0mm
Width

86.0mm
Depth

4.0mm
