Percept 10A (6AX) Card Swt BC/WH

SKU: PCC11BCW Category:

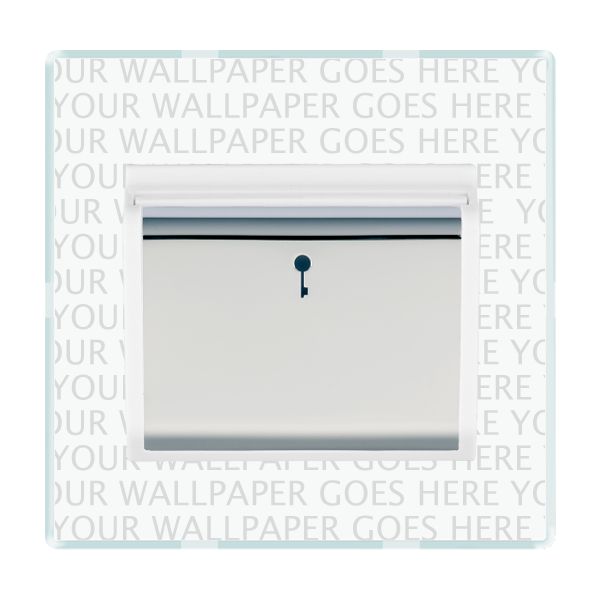

Percept 10A (6AX) Card Swt BC/WH
Percept 10A (6AX) Card Swt BC/WH - Image 2
Percept 10A (6AX) Card Swt BC/WH - Image 3
SKU: PCC11BCW Category:

Type

1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator

Plate Finish

Clear

Insert Finish

Bright Chrome/White

Description

Perception CFX Clear 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Bright Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Perception CFX – on Transparent Plates
Page-Sort-Order

007-038-001
Insert-Type

1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator
Insert-Colour

Bright Chrome/White
Uf-ItmLabelTechInsert

C11
Uf-HAM-Plate-Range

Perception CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Perception CFX – on Transparent Plates
Patents-And-Trade-Marks

Perception is a Registered Trade Mark No 2560269 CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Perception CFX Clear 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Bright Chrome/White
PlateFinish

Perception CFX Clear
EAN13-Barcode

5.0175E+12
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm
Switched-Poles

Single
Contact-Gap-Minimum

3mm
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-3
Commodity-Code

85363010
Wiring-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/wiring_images/WDC11.jpg
Item-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/item_images/PCC11BC-W.jpg
Dimension-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/dimension_images/TD-PCC11.jpg
Luckins-TSI

394056993
product-code

S PC BC-WH
family-code

S PERCEP
last-inv

07/08/2022
unit-weight

0
weight-units

GR
Uf-LuckinsEDP

4533301502
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

7
HAM-SortOrder

38
InsertSortOrder

1
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Clear
Uf-HAMFrameFinish

n/a
WEB-InsertType

Key Card
WEB-NumberofGangs

1
MainInsertColour

Bright Chrome
TrimColour

White
Last-Updated-At-Hamilton

03/02/2026
Current-Rating

10A (6AX)
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
Depth

4.0mm
Plate-Finish

Clear
Subheader4687

Perception CFX – on Transparent Plates Key Card Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/mmdg/#p=1
