Percept 1g 20AX DP Rkr + Neon SC/WH

Percept 1g 20AX DP Rkr + Neon SC/WH
Percept 1g 20AX DP Rkr + Neon SC/WH - Image 2
Percept 1g 20AX DP Rkr + Neon SC/WH - Image 3
Percept 1g 20AX DP Rkr + Neon SC/WH - Image 4

Type

1 gang 20AX Double Pole Rocker + Neon

Plate Finish

Clear

Insert Finish

Satin Chrome/White

Description

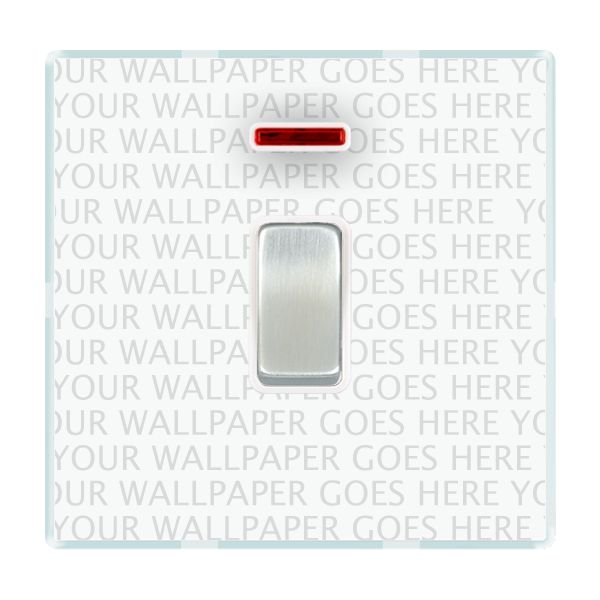

Perception CFX Clear 1 gang 20AX Double Pole Rocker and Neon Satin Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Perception CFX – on Transparent Plates
Page-Sort-Order

007-027-002
Insert-Type

1 gang 20AX Double Pole Rocker + Neon
Insert-Colour

Satin Chrome/White
Uf-ItmLabelTechInsert

DPN
Uf-HAM-Plate-Range

Perception CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Perception CFX – on Transparent Plates
Patents-And-Trade-Marks

Perception is a Registered Trade Mark No 2560269 CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Perception CFX Clear 1 gang 20AX Double Pole Rocker and Neon Satin Chrome/White
PlateFinish

Perception CFX Clear
EAN13-Barcode

5017504021610

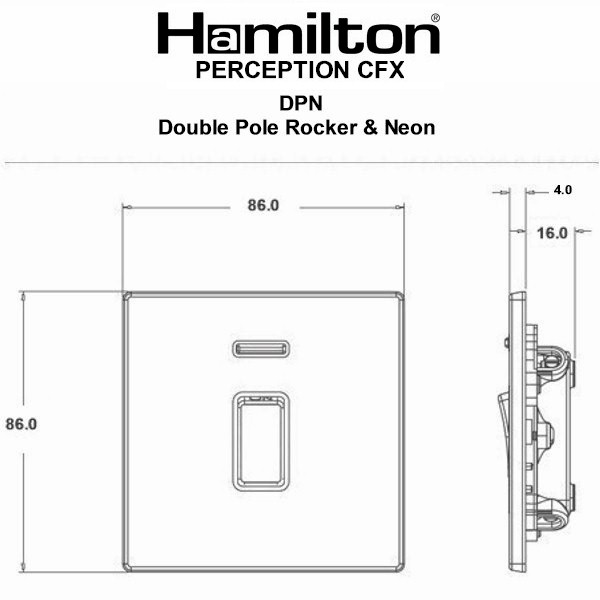

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm
Switched-Poles

Double
Current-Rating

20AX
Maximum-Load

20 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

394057413
Tech-Sheet-Page-Footer

PCDPNSC-W – Perception CFX Clear 1 gang 20AX Double Pole Rocker and Neon Satin Chrome/White
product-code

S PC SC-WH
family-code

S PERCEP
last-inv

12/10/22
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533301926
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

007
HAM-SortOrder

027
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Clear
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Satin Chrome
TrimColour

White
Last-Updated-At-Hamilton

05/12/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Clear
Subheader2

Perception CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Percept 1g 20AX DP Rkr + Neon SC/WH
Height

86.0mm
Width

86.0mm
Depth

4.0mm
