Percept 1g 20AX Inter Tog PB

SKU: PCT31PB Category:

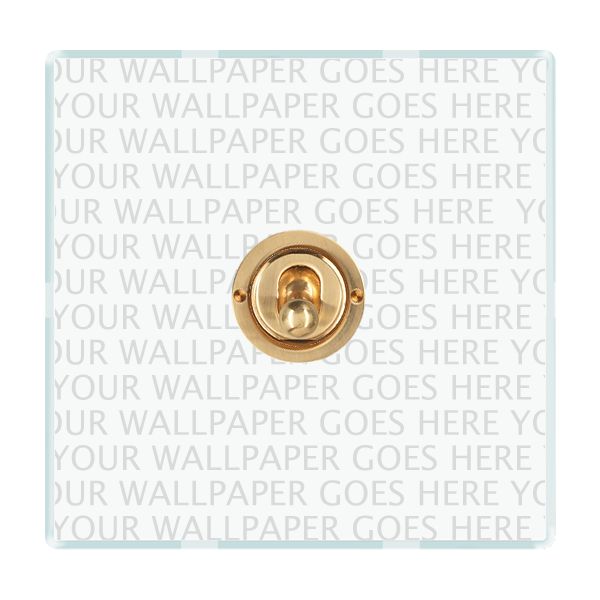

Percept 1g 20AX Inter Tog PB
Percept 1g 20AX Inter Tog PB - Image 2
Percept 1g 20AX Inter Tog PB - Image 3
Percept 1g 20AX Inter Tog PB - Image 4
SKU: PCT31PB Category:

Type

1 gang 20AX Intermediate FL Dolly

Plate Finish

Clear

Insert Finish

Polished Brass

Description

Perception CFX Clear 1 gang 20AX Intermediate Toggle Polished Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Perception CFX – on Transparent Plates
Page-Sort-Order

007-016-001
Insert-Type

1 gang 20AX Intermediate FL Dolly
Insert-Colour

Polished Brass
Uf-ItmLabelTechInsert

T31-FLDLY
Uf-HAM-Plate-Range

Perception CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Perception CFX – on Transparent Plates
Patents-And-Trade-Marks

Perception is a Registered Trade Mark No 2560269 CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Perception CFX Clear 1 gang 20AX Intermediate Toggle Polished Brass
PlateFinish

Perception CFX Clear
EAN13-Barcode

5017504024314

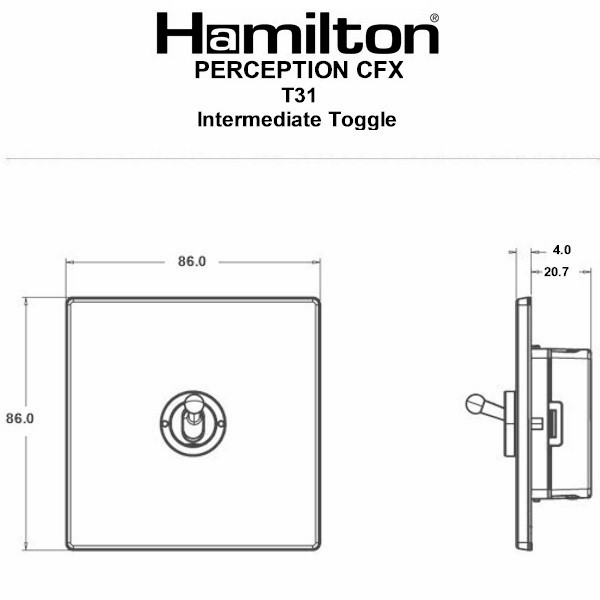

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

394059233
Tech-Sheet-Page-Footer

PCT31PB – Perception CFX Clear 1 gang 20AX Intermediate Toggle Polished Brass
product-code

S PC POLBR
family-code

S PERCEP
last-inv

24/04/2024
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533303746
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

7
HAM-SortOrder

16
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Clear
Uf-HAMFrameFinish

n/a
WEB-InsertType

Intermediate
WEB-NumberofGangs

1
MainInsertColour

Polished Brass
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/2026
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Clear
Subheader2

Perception CFX – on Transparent Plates Dollies
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
description

Percept 1g 20AX Inter Tog PB
Height

86.0mm
Width

86.0mm
Depth

4.0mm

Download datasheet
