Percept Single Blank Plate

SKU: PCBPS Category:
Percept Single Blank Plate
Percept Single Blank Plate - Image 2
Percept Single Blank Plate - Image 3
SKU: PCBPS Category:

Type

Single Blank Plate

Plate Finish

Clear

Insert Finish

N/A

Description

Perception CFX Clear Single Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Perception CFX – on Transparent Plates
Page-Sort-Order

007-036-001
Insert-Type

Single Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPS
Uf-HAM-Plate-Range

Perception CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Perception CFX – on Transparent Plates
Patents-And-Trade-Marks

Perception is a Registered Trade Mark No 2560269 CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Perception CFX Clear Single Blank Plate
PlateFinish

Perception CFX Clear
EAN13-Barcode

5017504021153
Dimensions(Nominal)

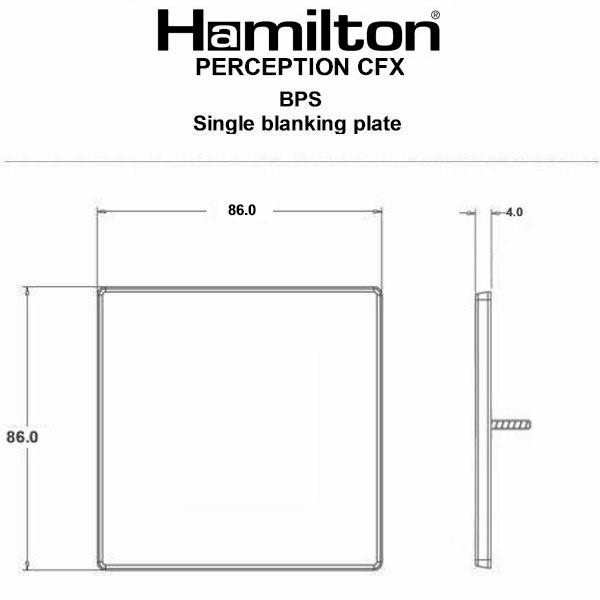

Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

39206100
Item-Image

Dimension-Image

Luckins-TSI

394056964
Tech-Sheet-Page-Footer

PCBPS – Perception CFX Clear Single Blank Plate
product-code

S PC PLATE
family-code

S PERCEP
last-inv

26/02/26
unit-weight

87.20000
weight-units

GR
Uf-LuckinsEDP

4533301476
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

007
HAM-SortOrder

036
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Clear
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Single Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

26/02/26
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Clear
Subheader2

Perception CFX Range
Weight

87 GR
IP-Rating

IP2XB
description

Percept Single Blank Plate
Height

86.0mm
Width

86.0mm
Depth

4.0mm
