Perception CFX Clear Double Blank Plate
SKU: PCBPD
Category: Perception CFX - on Transparent Plates Blank Plates
Type
Double Blank PlatePlate Finish
ClearInsert Finish
N/AAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Perception CFX – on Transparent Plates |
| Page-Sort-Order | 007-036-002 |
| Insert-Type | Double Blank Plate |
| Insert-Colour | N/A |
| Uf-ItmLabelTechInsert | BPD |
| Uf-HAM-Plate-Range | Perception CFX |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Perception CFX – on Transparent Plates |
| Patents-And-Trade-Marks | Perception is a Registered Trade Mark No 2560269 CFX is a Registered Trade Mark No 2398667 |
| Item-Long-Description | Perception CFX Clear Double Blank Plate |
| PlateFinish | Perception CFX Clear |
| EAN13-Barcode | 5017504021146 |

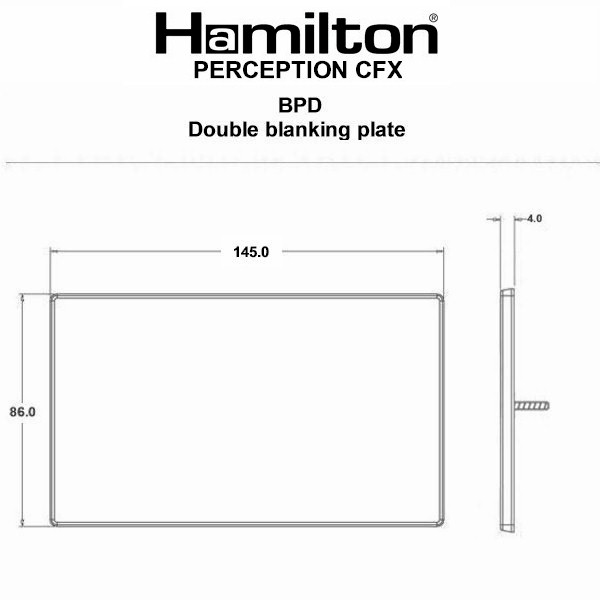

| Dimensions(Nominal) | Double: Height = 86.0mm Width = 145.0mm Depth = 4.0mm |
| Switched-Poles | N/A |
| Contact-Gap-Minimum | N/A |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | N/A |
| Additional-Notes | Plates must be Earthed via the Earth Tag. |
| Commodity-Code | 39206100 |
| Item-Image | PCBPD.jpg |
| Dimension-Image | TD-PCBPD.jpg |
| Luckins-TSI | 394056951 |
| Tech-Sheet-Page-Footer | PCBPD – Perception CFX Clear Double Blank Plate |
| product-code | S PC PLATE |
| family-code | S PERCEP |
| last-inv | 12/10/2025 |
| unit-weight | 136.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533301463 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 7 |
| HAM-SortOrder | 36 |
| InsertSortOrder | 002 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | CFX Push |
| Uf-HAMPlateFinish | Clear |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Plate |
| WEB-NumberofGangs | Double Plate |
| MainInsertColour | N |
| TrimColour | A |
| Last-Updated-At-Hamilton | 31/12/2025 |
| Current-Rating | n/a |
| Wiring-Image | WD-NONE.jpg |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = CFX Push |
| Minimum-Wall-Box-Depth | Any Box |
| Plate-Finish | Clear |
| Subheader2 | Perception CFX – on Transparent Plates Blank Plates |
| Weight | 136 GR |
| IP-Rating | IP2XB |
| description | Percept Double Blank Plate |
| Height | 86.0mm |
| Width | 145.0mm |
| Depth | 4.0mm |
