Metalclad Plt 2 Euro Apert 50X50+B/box

SKU: MCEURO2W Category:
Metalclad Plt 2 Euro Apert 50X50+B/box
Metalclad Plt 2 Euro Apert 50X50+B/box - Image 2
SKU: MCEURO2W Category:

Type

2 gang EuroFix 50x50mm Apertured Plate with Grid

Plate Finish

Grey

Insert Finish

N/A

Description

Metalclad Single Plate complete with 2 EuroFix Aperture 50x50mm with Back box

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Metalclad
Page-Sort-Order

052-046-402
Insert-Type

2 gang EuroFix 50x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

MCEURO2
Uf-HAM-Plate-Range

Metalclad
Uf-HAMPlate-Generic-Size

Single
Range-Name

Metalclad
Item-Long-Description

Metalclad Single Plate complete with 2 EuroFix Aperture 50x50mm with Back box
PlateFinish

Metalclad Grey
EAN13-Barcode

5017503940363
Dimensions(Nominal)

Single: Height = 80.0mm Width = 80.0mm Depth = 41.5mm
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Standard-Approval

N/A
Additional-Notes

Must be installed using the supplied 40mm deep Metal Clad back box
Commodity-Code

73269098
Item-Image

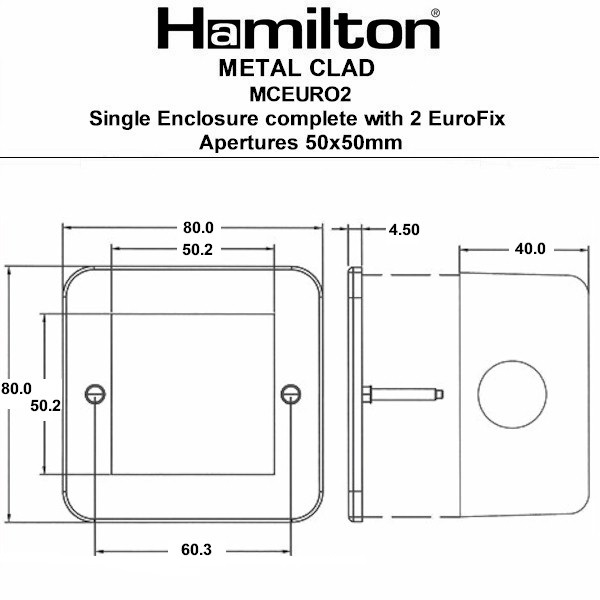

Dimension-Image

Luckins-TSI

405688218
Tech-Sheet-Page-Footer

MCEURO2W – Metalclad Single Plate complete with 2 EuroFix Aperture 50x50mm with Back box
product-code

S TRD-MTCL
family-code

S TRD MCL
last-inv

02/03/2026
unit-weight

192.00000
weight-units

GR
Uf-LuckinsEDP

4533394124
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

52
HAM-SortOrder

46
InsertSortOrder

402
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Grey
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate + Back Box
WEB-NumberofGangs

2
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

04/03/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Earth-Terminal-Capacity-2

4×2.5mm²
Earth-Terminal-Capacity-3

3x4mm²
Earth-Terminal-Capacity-4

2x6mm² Multi-strand
Earth-Terminal-Capacity-5

1x10mm²
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Weight

192 GR
Voltage

Insert Specific
IP-Rating

IPXXB
Height

80.0mm
Width

80.0mm
Depth

41.5mm
Plate-Finish

Grey
Subheader2

Metalclad Plates
