Metalclad 40mm 1g Box With Terminal

SKU: MC1G40MMBOX Category:
Metalclad 40mm 1g Box With Terminal
Metalclad 40mm 1g Box With Terminal - Image 2
SKU: MC1G40MMBOX Category:

Type

Single Surface Mounted Pattress Box 40mm Deep

Plate Finish

Grey

Insert Finish

N/A

Description

Metalclad 40mm 1 Gang Box With Terminal

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Metalclad
Page-Sort-Order

052-335-
Insert-Type

Single Surface Mounted Pattress Box 40mm Deep
Insert-Colour

N/A
Range-Name

Metalclad
Item-Long-Description

Metalclad 40mm 1 Gang Box With Terminal
EAN13-Barcode

5017503940400
Commodity-Code

73269098
Item-Image

Luckins-TSI

405688111
Tech-Sheet-Page-Footer

MC1G40MM-BOX – Metalclad 40mm 1 Gang Box With Terminal
product-code

S TRD-MTCL
family-code

S TRD MCL
last-inv

13/01/2026
unit-weight

138.00000
weight-units

GR
Uf-LuckinsEDP

4533394027
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

52
HAM-SortOrder

335
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Grey
Uf-HAMFrameFinish

n/a
WEB-InsertType

Back Boxes 40mm
WEB-NumberofGangs

Single
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

04/03/2026
Uf-ItmLabelTechInsert

MCBBOX1X40
Uf-HAM-Plate-Range

Metalclad
Uf-HAMPlate-Generic-Size

Single
PlateFinish

Metalclad Grey
Dimensions(Nominal)

Single: Height = 80.0mm Width = 80.0mm Depth = 41.5mm
Current-Rating

n/a
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2

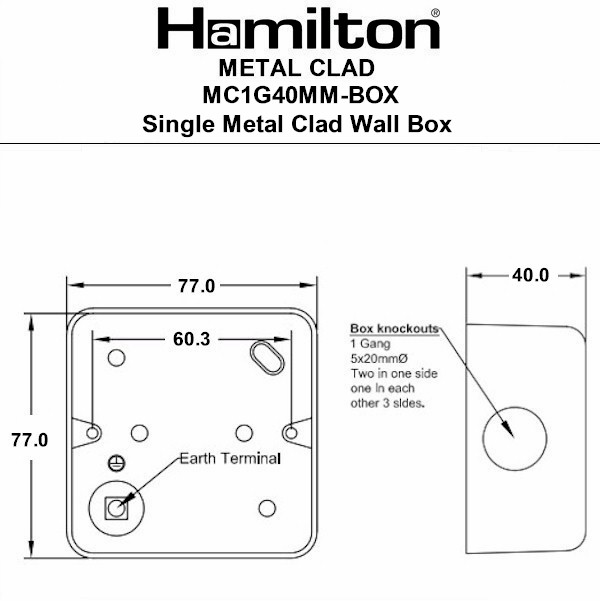

Dimension-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

40mm
Plate-Finish

Grey
Subheader2

Metalclad Pattress Boxes
Weight

138 GR
IP-Rating

IP2XD
Height

80.0mm
Width

80.0mm
Depth

41.5mm
