Description
Metalclad 1 gang 20AX Double Pole Rocker and Cable Outlet White/White
SKU: MCDPCWHW
Category: Metalclad Double Pole Switches
Type
1 gang 20AX Double Pole Rocker + Cable OutletPlate Finish
GreyInsert Finish
White/WhiteAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Metalclad |
| Page-Sort-Order | 052-027-404 |
| Insert-Type | 1 gang 20AX Double Pole Rocker + Cable Outlet |
| Insert-Colour | White/White |
| Uf-ItmLabelTechInsert | MCDPC |
| Uf-HAM-Plate-Range | Metalclad |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Metalclad |
| Item-Long-Description | Metalclad 1 gang 20AX Double Pole Rocker and Cable Outlet White/White |
| PlateFinish | Metalclad Grey |
| EAN13-Barcode | 5017503940264 |

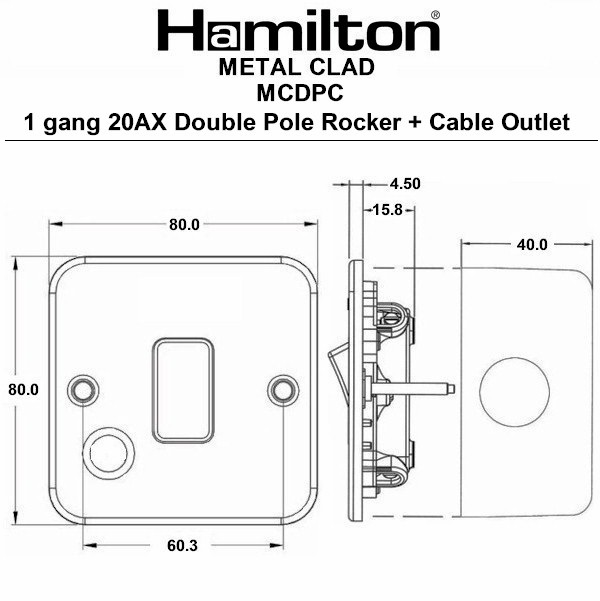

| Dimensions(Nominal) | Single: Height = 80.0mm Width = 80.0mm Depth = 41.5mm |
| Switched-Poles | Double |
| Current-Rating | 20AX |
| Maximum-Load | 20 Amp |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 5x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Cable-Outlet-Minimum-Maximum | Min = 0.75mm² Max = 2.5mm² |
| Standard-Approval | BS EN 60669-1 |
| Additional-Notes | Must be installed using the supplied 40mm deep Metal Clad back box |
| Commodity-Code | 85365080 |
| Item-Image | MCDPCWH-W.jpg |
| Dimension-Image | TD-MCDPC.jpg |
| Luckins-TSI | 405688182 |
| Tech-Sheet-Page-Footer | MCDPCWH-W – Metalclad 1 gang 20AX Double Pole Rocker and Cable Outlet White/White |
| product-code | S TRD-MTCL |
| family-code | S TRD MCL |
| last-inv | 08/10/25 |
| unit-weight | 255.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533394098 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 052 |
| HAM-SortOrder | 027 |
| InsertSortOrder | 404 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Cable-Outlet-Min | 0.75mm² |
| Cable-Outlet-Max | 2.5mm² |
| Uf-HAMPlateFinish | Grey |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Double Pole + Cable Outlet |
| WEB-NumberofGangs | 1 |
| MainInsertColour | White |
| TrimColour | White |
| Last-Updated-At-Hamilton | 11/02/26 |
| Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Wiring-Image | WD20DP.jpg |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Plate-Finish | Grey |
| Subheader2 | Metalclad Range |
| Weight | 255 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP20 |
| description | Metalclad 1g 20AX DP Rkr+CO WH/WH |
| Height | 80.0mm |
| Width | 80.0mm |
| Depth | 41.5mm |
Download datasheet
