Metalclad 13A DP Fuse Spur + Neon WH/WH

SKU: MCSPNWHW Category:
Metalclad 13A DP Fuse Spur + Neon WH/WH
Metalclad 13A DP Fuse Spur + Neon WH/WH - Image 2
Metalclad 13A DP Fuse Spur + Neon WH/WH - Image 3
Metalclad 13A DP Fuse Spur + Neon WH/WH - Image 4
SKU: MCSPNWHW Category:

Type

1 gang 13A Double Pole Fused Spur + Neon

Plate Finish

Grey

Insert Finish

White/White

Description

Metalclad 1 gang 13A Double Pole Fused Spur and Neon White/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Metalclad
Page-Sort-Order

052-026-402
Insert-Type

1 gang 13A Double Pole Fused Spur + Neon
Insert-Colour

White/White
Uf-ItmLabelTechInsert

MCSPN
Uf-HAM-Plate-Range

Metalclad
Uf-HAMPlate-Generic-Size

Single
Range-Name

Metalclad
Item-Long-Description

Metalclad 1 gang 13A Double Pole Fused Spur and Neon White/White
PlateFinish

Metalclad Grey
EAN13-Barcode

5017503940356

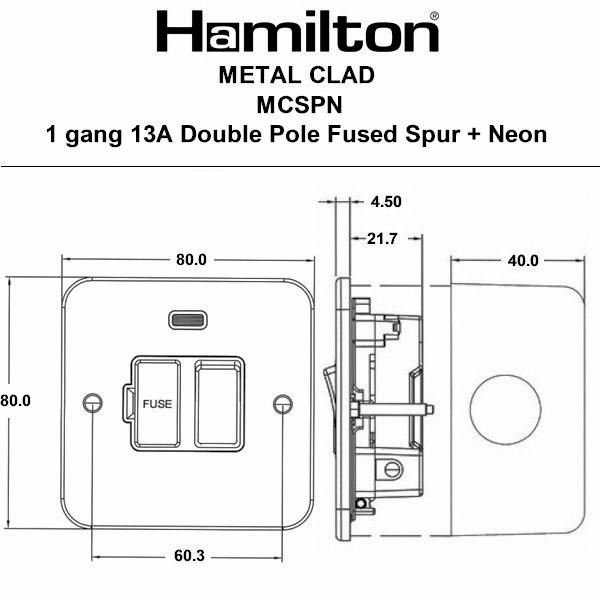

Dimensions(Nominal)

Single: Height = 80.0mm Width = 80.0mm Depth = 41.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Standard-Approval

BS 1363-4
Additional-Notes

Must be installed using the supplied 40mm deep Metal Clad back box
Commodity-Code

85363010
Item-Image

Dimension-Image

Luckins-TSI

405688302
Tech-Sheet-Page-Footer

MCSPNWH-W – Metalclad 1 gang 13A Double Pole Fused Spur and Neon White/White
product-code

S TRD-MTCL
family-code

S TRD MCL
last-inv

19/02/26
unit-weight

260.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533394218
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

052
HAM-SortOrder

026
InsertSortOrder

402
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Grey
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole Fused Spur + Neon
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

White
Last-Updated-At-Hamilton

19/02/26
Maximum-Installation-Altitud

2000m
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Plate-Finish

Grey
Subheader2

Metalclad Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bkdv/#p=1
Weight

260 GR
Voltage

220/250V AC
IP-Rating

IP20
description

Metalclad 13A DP Fuse Spur + Neon WH/WH
Height

80.0mm
Width

80.0mm
Depth

41.5mm
