L-Tet CFX MW/MW DP SS2 + USBULTx2 MW/WH

SKU: LTXSS2USBULTMWMWW Category:
L-Tet CFX MW/MW DP SS2 + USBULTx2 MW/WH
L-Tet CFX MW/MW DP SS2 + USBULTx2 MW/WH - Image 2
SKU: LTXSS2USBULTMWMWW Category:

Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2x2.4A (4.8A Total)

Plate Finish

Matt White Frame/Matt White Front

Insert Finish

Matt White/White

Description

Linea-Tetra CFX Matt White Frame/Matt White Front 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Matt White/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-023-001
Subheader2

Linea-Tetra CFX USB Power Sockets
Insert-Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2×2.4A (4.8A Total)
Plate-Finish

Matt White Frame/Matt White Front
Insert-Colour

Matt White/White
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Uf-ItmLabelTechInsert

SS2USBX2ULT
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Matt White Frame/Matt White Front 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Matt White/White
PlateFinish

Linea-Tetra CFX Matt White Frame/Matt White Front
EAN13-Barcode

5017504122898

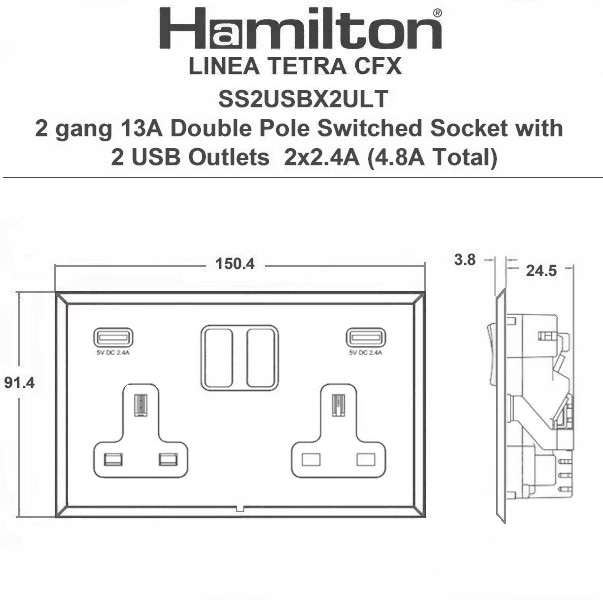

Dimensions(Nominal)

Double: Height = 91.4mm Width = 150.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

13 Amp, USB 2 x 2.4A
Voltage

180/250V AC USB = 5V
Maximum-Load

13 Amp, USB = 2.4A X 2
Mains-Frequency

50/60Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Wiring-Image

Dimension-Image

Luckins-TSI

436614497
Tech-Sheet-Page-Footer

LTXSS2USBULTMW-MWW – Linea-Tetra CFX Matt White Frame/Matt White Front 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Matt White/White
description

L-Tet CFX MW/MW DP SS2 + USBULTx2 MW/WH
product-code

S LT MW-MW
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533440706
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

23
InsertSortOrder

001
Generic-Size

Double
Height

91.4mm
Width

150.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Matt White
Uf-HAMFrameFinish

Matt White
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Matt White
TrimColour

White
Last-Updated-At-Hamilton

12/05/2025
