L-Tet CFX AB/AB DP SS2+USB+USB C AB/BL

SKU: LTXSS2USBCABABB Category:
L-Tet CFX AB/AB DP SS2+USB+USB C AB/BL
L-Tet CFX AB/AB DP SS2+USB+USB C AB/BL - Image 2
SKU: LTXSS2USBCABABB Category:

Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2x2.4A (4.8A Total)

Plate Finish

Antique Brass Frame/Antique Brass Front

Insert Finish

Antique Brass/Black

Description

Linea-Tetra CFX Antique Brass Frame/Antique Brass Front 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Antique Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-023-002
Subheader2

Linea-Tetra CFX USB Power Sockets
Insert-Type

2 gang 13A Double Pole Switched Socket with 1 USB Outlet + 1 USB Type C Outlet 2×2.4A (4.8A Total)
Plate-Finish

Antique Brass Frame/Antique Brass Front
Insert-Colour

Antique Brass/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Uf-ItmLabelTechInsert

SS2USBC
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Antique Brass Frame/Antique Brass Front 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Antique Brass/Black
PlateFinish

Linea-Tetra CFX Antique Brass Frame/Antique Brass Front
EAN13-Barcode

5017504122812

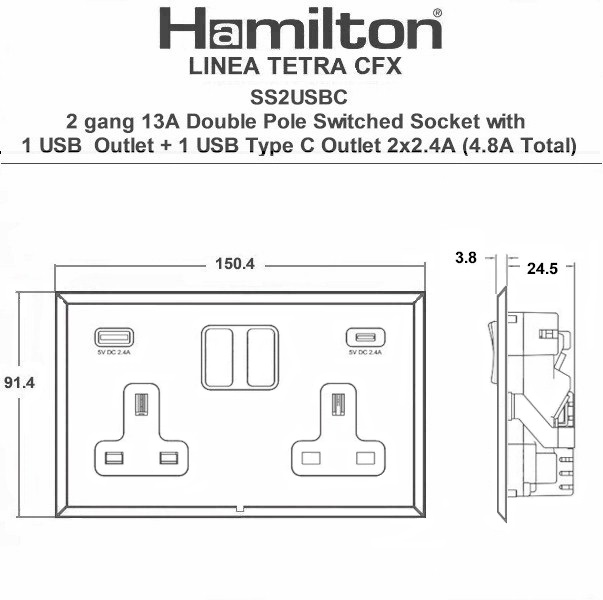

Dimensions(Nominal)

Double: Height = 91.4mm Width = 150.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

13 Amp, 1 x 2.4A Type A + 1 x 2.4A Type C
Voltage

180/250V AC USB TYPE A & C =5V
Maximum-Load

13 Amp, USB TYPE A & C = 2.4A
Mains-Frequency

50/60Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Wiring-Image

Dimension-Image

Luckins-TSI

436614387
Tech-Sheet-Page-Footer

LTXSS2USBCAB-ABB – Linea-Tetra CFX Antique Brass Frame/Antique Brass Front 2 gang 13A Double Pole Switched Socket with 1 USB + 1 USB Type C Outlet 2×2.4A Antique Brass/Black
description

L-Tet CFX AB/AB DP SS2+USB+USB C AB/BL
product-code

S LT AB-AB
family-code

S TET-CFX
last-inv

31/07/2025
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533440599
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

23
InsertSortOrder

002
Generic-Size

Double
Height

91.4mm
Width

150.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Antique Brass
TrimColour

Black
Last-Updated-At-Hamilton

31/12/2025
