L-Tet CFX RB/RB 1g Non-Isolat DAB Sat BL

L-Tet CFX RB/RB 1g Non-Isolat DAB Sat BL
L-Tet CFX RB/RB 1g Non-Isolat DAB Sat BL - Image 2
L-Tet CFX RB/RB 1g Non-Isolat DAB Sat BL - Image 3

Type

1 gang Non-Isolated Satellite (DAB Compatible)

Plate Finish

Richmond Bronze Frame/Richmond Bronze Front

Insert Finish

Black

Description

Linea-Tetra CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang Non-Isolated Digital Satellite (DAB Compatible) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-031-012
Subheader2

Linea-Tetra CFX Television / Data
Insert-Type

1 gang Non-Isolated Satellite (DAB Compatible)
Plate-Finish

Richmond Bronze Frame/Richmond Bronze Front
Insert-Colour

Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
Uf-ItmLabelTechInsert

DSAT
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang Non-Isolated Digital Satellite (DAB Compatible) Black
PlateFinish

Linea-Tetra CFX Richmond Bronze Frame/Richmond Bronze Front
EAN13-Barcode

5017504121129

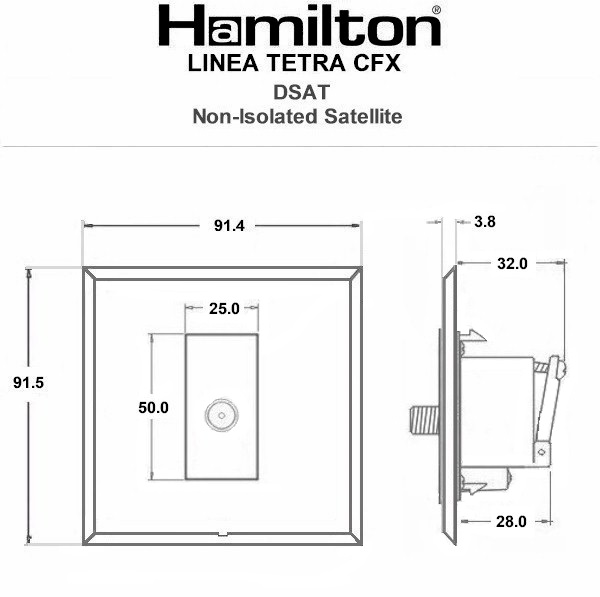

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

N/A
Current-Rating

n/a
IP-Rating

IP2XD
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733. BS EN 50083-2:2012/A1; 2015. BS EN 61169-24:2009.
Frequencies-1

SAT DC=5-2200 MHz
Commodity-Code

85367000
Wiring-Image

Dimension-Image

Luckins-TSI

436612842
Tech-Sheet-Page-Footer

LTXDSATRB-RBB – Linea-Tetra CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang Non-Isolated Digital Satellite (DAB Compatible) Black
description

L-Tet CFX RB/RB 1g Non-Isolat DAB Sat BL
product-code

S LT RB-RB
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533439050
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

31
InsertSortOrder

012
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

Richmond Bronze
WEB-InsertType

Satellite Non-Isolated DAB
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
