L-Tet CFX MW/MW 2g RJ45 CAT5E Unsheld WH

L-Tet CFX MW/MW 2g RJ45 CAT5E Unsheld WH
L-Tet CFX MW/MW 2g RJ45 CAT5E Unsheld WH - Image 2
L-Tet CFX MW/MW 2g RJ45 CAT5E Unsheld WH - Image 3

Type

2 gang RJ45 CAT 5E Outlet - Unshielded

Plate Finish

Matt White Frame/Matt White Front

Insert Finish

White

Description

Linea-Tetra CFX Matt White Frame/Matt White Front 2 gang RJ45 CAT 5E Outlet – Unshielded White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-033-002
Subheader2

Linea-Tetra CFX Television / Data
Insert-Type

2 gang RJ45 CAT 5E Outlet – Unshielded
Plate-Finish

Matt White Frame/Matt White Front
Insert-Colour

White
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
Uf-ItmLabelTechInsert

2J45
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Matt White Frame/Matt White Front 2 gang RJ45 CAT 5E Outlet – Unshielded White
PlateFinish

Linea-Tetra CFX Matt White Frame/Matt White Front
EAN13-Barcode

5017504119720
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

N/A
Current-Rating

n/a
IP-Rating

IP2XD
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
EuroFix-Additional-Notes

Can be used in both EIA 568A and EIA 568B wiring schedules
Commodity-Code

85176990
Wiring-Image

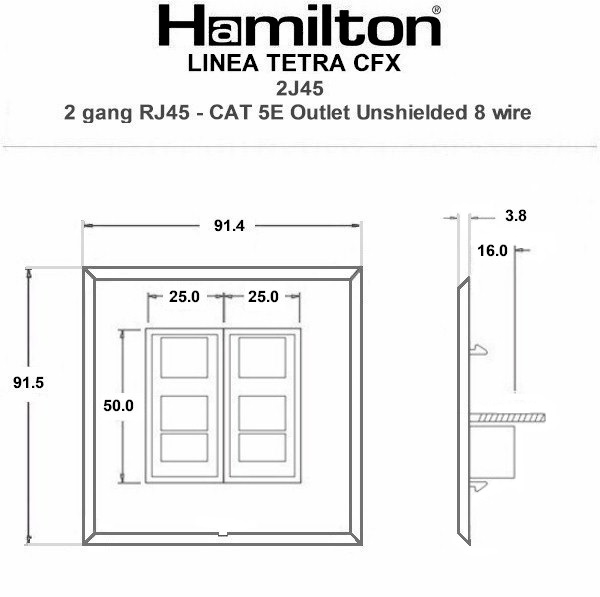

Dimension-Image

Luckins-TSI

436611775
Tech-Sheet-Page-Footer

LTX2J45MW-MWW – Linea-Tetra CFX Matt White Frame/Matt White Front 2 gang RJ45 CAT 5E Outlet – Unshielded White
description

L-Tet CFX MW/MW 2g RJ45 CAT5E Unsheld WH
product-code

S LT MW-MW
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533437984
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

33
InsertSortOrder

002
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Matt White
Uf-HAMFrameFinish

Matt White
WEB-InsertType

RJ45 CAT 5E – Unshielded
WEB-NumberofGangs

2
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
