L-Tet CFX MB/MB 2g N-Iso TV+Sat 2in/2 BL

SKU: LTXTVSATMBMBB Category:
L-Tet CFX MB/MB 2g N-Iso TV+Sat 2in/2 BL
L-Tet CFX MB/MB 2g N-Iso TV+Sat 2in/2 BL - Image 2
L-Tet CFX MB/MB 2g N-Iso TV+Sat 2in/2 BL - Image 3
SKU: LTXTVSATMBMBB Category:

Type

2 gang Non-Isolated TV+Satellite 2in/2out

Plate Finish

Matt Black Frame/Matt Black Front

Insert Finish

Black

Description

Linea-Tetra CFX Matt Black Frame/Matt Black Front 2 gang Non-Isolated TV+Satellite 2in/2out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-032-003
Subheader2

Linea-Tetra CFX Television / Data
Insert-Type

2 gang Non-Isolated TV+Satellite 2in/2out
Plate-Finish

Matt Black Frame/Matt Black Front
Insert-Colour

Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
Uf-ItmLabelTechInsert

TVSAT
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Matt Black Frame/Matt Black Front 2 gang Non-Isolated TV+Satellite 2in/2out Black
PlateFinish

Linea-Tetra CFX Matt Black Frame/Matt Black Front
EAN13-Barcode

5017504123604

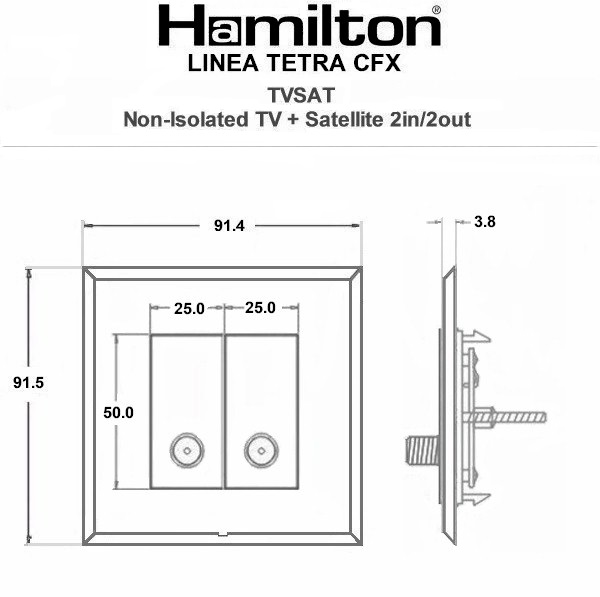

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

N/A
Current-Rating

n/a
IP-Rating

IP2XD
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Dimension-Image

Luckins-TSI

436615182
Tech-Sheet-Page-Footer

LTXTVSATMB-MBB – Linea-Tetra CFX Matt Black Frame/Matt Black Front 2 gang Non-Isolated TV+Satellite 2in/2out Black
description

L-Tet CFX MB/MB 2g N-Iso TV+Sat 2in/2 BL
product-code

S LT MB-MB
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533441394
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

32
InsertSortOrder

003
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

Matt Black
WEB-InsertType

TV+Satellite Non-Isolated
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
