L-Tet CFX BG/BG No-Isolat TV (Female) QG

SKU: LTXDTVFBGBGQG Category:
L-Tet CFX BG/BG No-Isolat TV (Female) QG
L-Tet CFX BG/BG No-Isolat TV (Female) QG - Image 2
L-Tet CFX BG/BG No-Isolat TV (Female) QG - Image 3
SKU: LTXDTVFBGBGQG Category:

Type

1 gang Non-Isolated TV (female) (DAB Compatible)

Plate Finish

Basalt Gray Frame/Basalt Gray Front

Insert Finish

Quartz Grey

Description

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang Non-Isolated TV (Female) (DAB Compatible) Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-031-001
Insert-Type

1 gang Non-Isolated TV (female) (DAB Compatible)
Insert-Colour

Quartz Grey
Uf-ItmLabelTechInsert

DTVF
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang Non-Isolated TV (Female) (DAB Compatible) Quartz Grey
PlateFinish

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front
EAN13-Barcode

5017504092672

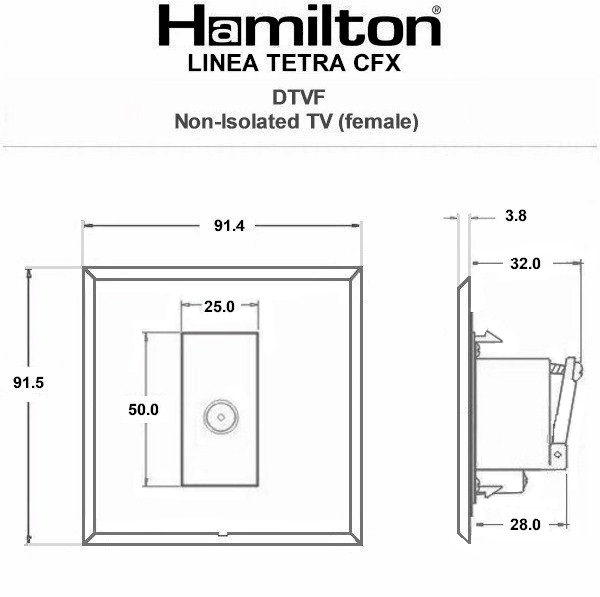

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Switched-Poles

N/A
Current-Rating

n/a
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733. BS EN 50083-2: 2012/A1:2015. BS EN 61169-2:2007
EuroFix-Additional-Notes

TV Outlet (IEC 169-2 Female Socket) Usually used for FM (DAB) outlet
Frequencies-1

TV DC=5-2200 MHz
Commodity-Code

85367000
Wiring-Image

Dimension-Image

Luckins-TSI

436612965
Tech-Sheet-Page-Footer

LTXDTVFBG-BGQG – Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang Non-Isolated TV (Female) (DAB Compatible) Quartz Grey
product-code

S LT BG-BG
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533439173
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

31
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Basalt Gray
Uf-HAMFrameFinish

Basalt Gray
WEB-InsertType

TV Non-Isolated Female
WEB-NumberofGangs

1
MainInsertColour

Quartz Grey
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

L-Tet CFX BG/BG No-Isolat TV (Female) QG
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Plate-Finish

Basalt Gray Frame/Basalt Gray Front
Subheader2

Linea-Tetra CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
