L-Tet CFX AB/AB 1g RJ45 CAT5E Unsheld BL

SKU: LTXJ45ABABB Category:
L-Tet CFX AB/AB 1g RJ45 CAT5E Unsheld BL
L-Tet CFX AB/AB 1g RJ45 CAT5E Unsheld BL - Image 2
L-Tet CFX AB/AB 1g RJ45 CAT5E Unsheld BL - Image 3
SKU: LTXJ45ABABB Category:

Type

1 gang RJ45 CAT 5E Outlet - Unshielded

Plate Finish

Antique Brass Frame/Antique Brass Front

Insert Finish

Black

Description

Linea-Tetra CFX Antique Brass Frame/Antique Brass Front 1 gang RJ45 CAT 5E Outlet – Unshielded Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-033-001
Insert-Type

1 gang RJ45 CAT 5E Outlet – Unshielded
Insert-Colour

Black
Uf-ItmLabelTechInsert

J45
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Antique Brass Frame/Antique Brass Front 1 gang RJ45 CAT 5E Outlet – Unshielded Black
PlateFinish

Linea-Tetra CFX Antique Brass Frame/Antique Brass Front
EAN13-Barcode

5017504121709

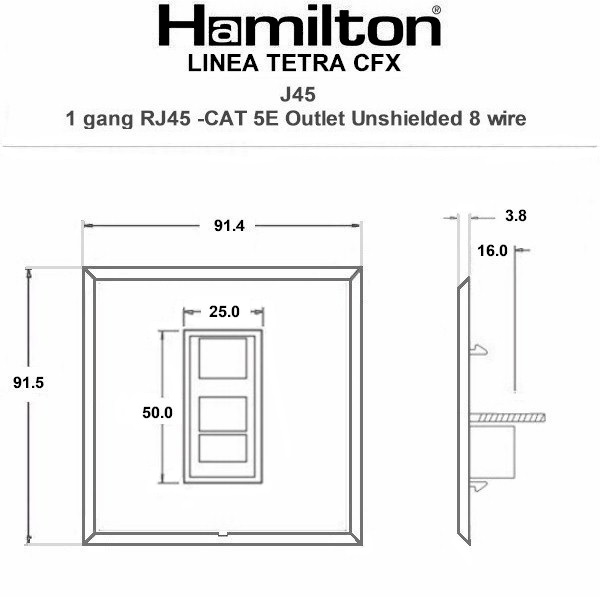

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

N/A
Current-Rating

n/a
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
EuroFix-Additional-Notes

Can be used in both EIA 568A and EIA 568B wiring schedules
Commodity-Code

85176990
Wiring-Image

Dimension-Image

Luckins-TSI

436613294
Tech-Sheet-Page-Footer

LTXJ45AB-ABB – Linea-Tetra CFX Antique Brass Frame/Antique Brass Front 1 gang RJ45 CAT 5E Outlet – Unshielded Black
product-code

S LT AB-AB
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533439500
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

33
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

RJ45 CAT 5E – Unshielded
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

02/10/2026
IP-Rating

IP2XD
description

L-Tet CFX AB/AB 1g RJ45 CAT5E Unsheld BL
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Plate-Finish

Antique Brass Frame/Antique Brass Front
Subheader2

Linea-Tetra CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
