L-Tet CFX SN/SS 4g 10AX 2 Way Rkr SS/WH

L-Tet CFX SN/SS 4g 10AX 2 Way Rkr SS/WH
L-Tet CFX SN/SS 4g 10AX 2 Way Rkr SS/WH - Image 2

Type

4 gang 10AX 2 Way Rocker

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

Satin Steel/White

Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 4 gang 10AX 2 Way Rocker Satin Steel/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-001-004
Subheader2

Linea-Tetra CFX Rocker Switches
Insert-Type

4 gang 10AX 2 Way Rocker
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Insert-Colour

Satin Steel/White
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Uf-ItmLabelTechInsert

R24
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 4 gang 10AX 2 Way Rocker Satin Steel/White
PlateFinish

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504125196

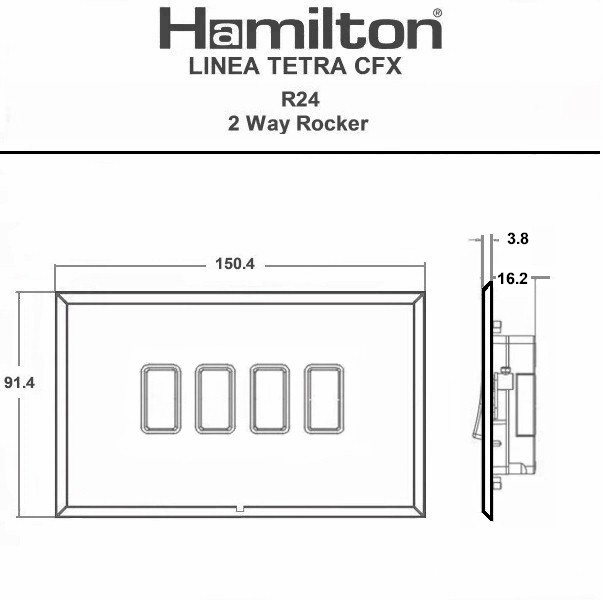

Dimensions(Nominal)

Double: Height = 91.4mm Width = 150.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Switched-Poles

Single
Current-Rating

10AX
Voltage

220/250V AC
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Tech-Sheet-Page-Footer

LTXR24SN-SSW – Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 4 gang 10AX 2 Way Rocker Satin Steel/White
description

L-Tet CFX SN/SS 4g 10AX 2 Way Rkr SS/WH
product-code

S LT SN-SS
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

1
InsertSortOrder

004
Generic-Size

Double
Height

91.4mm
Width

150.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

2 Way
WEB-NumberofGangs

4
MainInsertColour

Satin Steel
TrimColour

White
Last-Updated-At-Hamilton

01/05/2026

Download datasheet
