L-Tet CFX BG/BG Wd Rkr 1g 10AX Int BG/QG

L-Tet CFX BG/BG Wd Rkr 1g 10AX Int BG/QG

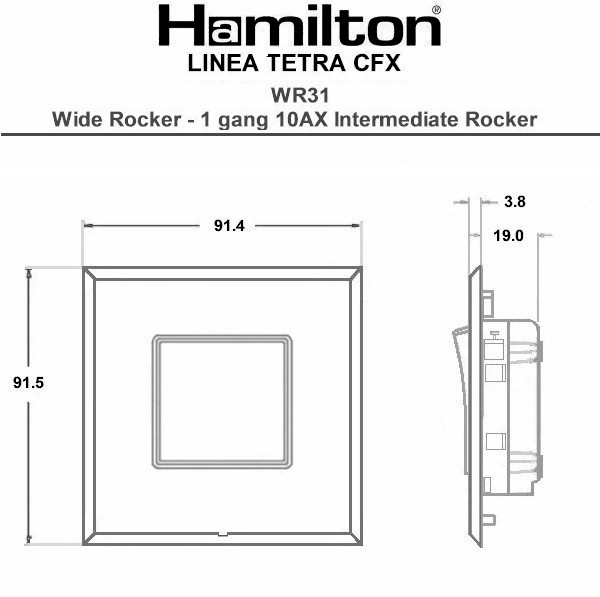

L-Tet CFX BG/BG Wd Rkr 1g 10AX Int BG/QG - Image 2

Type

Wide Rocker - 1 gang 10AX Intermediate Rocker

Plate Finish

Basalt Gray Frame/Basalt Gray Front

Insert Finish

Basalt Gray/Quartz Grey

Description

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front Wide Rocker 1 gang 10AX Intermediate Basalt Gray/Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-001-021
Insert-Type

Wide Rocker – 1 gang 10AX Intermediate Rocker
Insert-Colour

Basalt Gray/Quartz Grey
Uf-ItmLabelTechInsert

WR31
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front Wide Rocker 1 gang 10AX Intermediate Basalt Gray/Quartz Grey
PlateFinish

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front
EAN13-Barcode

5017504093075
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

1x4mm² Multi-strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

2×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Additional-Notes

CE Marked
Module-Size

Height = 67mm Width = 67mm Depth = 22mm
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Luckins-TSI

436615658
Tech-Sheet-Page-Footer

LTXWR31BG-BGQG – Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front Wide Rocker 1 gang 10AX Intermediate Basalt Gray/Quartz Grey
product-code

S LT BG-BG
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533441860
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

006
HAM-SortOrder

001
InsertSortOrder

021
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Module-Size-Height

67mm
Module-Size-Width

67mm
Module-Size-Depth

22mm
Uf-HAMPlateFinish

Basalt Gray
Uf-HAMFrameFinish

Basalt Gray
WEB-InsertType

Intermediate Wide
WEB-NumberofGangs

1
MainInsertColour

Basalt Gray
TrimColour

Quartz Grey
Last-Updated-At-Hamilton

05/12/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Basalt Gray Frame/Basalt Gray Front
Subheader2

Linea-Tetra CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Tet CFX BG/BG Wd Rkr 1g 10AX Int BG/QG
Height

91.5mm
Width

91.4mm
Depth

3.8mm
