Description
Linea-Tetra CFX Satin Brass Frame/Satin Brass Front 2 gang 13A Double Pole Switched Socket Satin Brass/White
SKU: LTXSS2SBSBW
Category: Linea-Tetra CFX Power Sockets
Type
2 gang 13A Double Pole Switched SocketPlate Finish
Satin Brass Frame/Satin Brass FrontInsert Finish
Satin Brass/WhiteAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Linea-Tetra CFX |
| Page-Sort-Order | 006-021-002 |
| Insert-Type | 2 gang 13A Double Pole Switched Socket |
| Insert-Colour | Satin Brass/White |
| Uf-ItmLabelTechInsert | SS2 |
| Uf-HAM-Plate-Range | Linea-Tetra CFX |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Linea-Tetra CFX |
| Patents-And-Trade-Marks | Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B |
| Item-Long-Description | Linea-Tetra CFX Satin Brass Frame/Satin Brass Front 2 gang 13A Double Pole Switched Socket Satin Brass/White |
| PlateFinish | Linea-Tetra CFX Satin Brass Frame/Satin Brass Front |
| EAN13-Barcode | 5017504122805 |

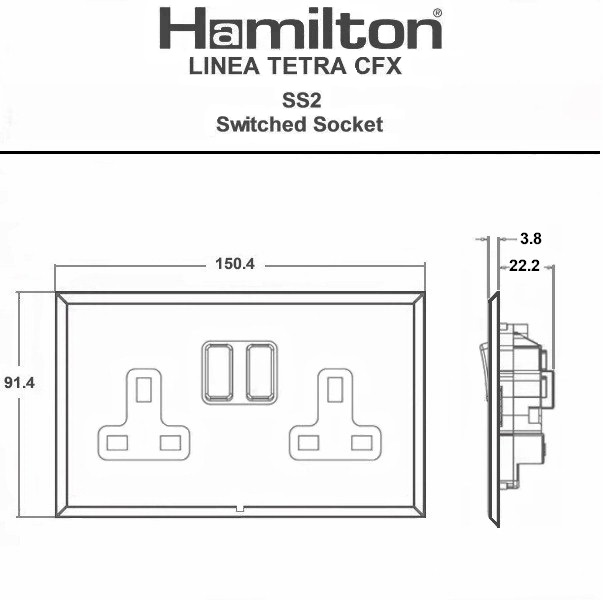

| Dimensions(Nominal) | Double: Height = 91.4mm Width = 150.4mm Depth = 3.8mm |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Switched-Poles | Double |
| Current-Rating | 13 Amp |
| Maximum-Load | 13 Amp |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 4×2.5mm² |
| Terminal-Capacity-2 | 3x4mm² |
| Terminal-Capacity-3 | 2x6mm² Multi-Strand |
| Terminal-Capacity-4 | 1x10mm² |
| Earth-Terminal-Capacity-1 | 4×2.5mm² |
| Earth-Terminal-Capacity-2 | 3x4mm² |
| Earth-Terminal-Capacity-3 | 2x6mm² Multi-Strand |
| Earth-Terminal-Capacity-4 | 1x10mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS 1363-2 |
| Additional-Notes | Dual Earth: Yes |
| Commodity-Code | 85366990 |
| Wiring-Image | WDSS2.jpg |
| Dimension-Image | TD-LTXSS2.jpg |
| Luckins-TSI | 436614374 |
| Tech-Sheet-Page-Footer | LTXSS2SB-SBW – Linea-Tetra CFX Satin Brass Frame/Satin Brass Front 2 gang 13A Double Pole Switched Socket Satin Brass/White |
| product-code | S LT SB-SB |
| family-code | S TET-CFX |
| last-inv | 12/11/2025 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533440586 |
| Uf-HAMInnerBoxQty | 1 |
| Uf-OuterBoxQty | 20 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 6 |
| HAM-SortOrder | 21 |
| InsertSortOrder | 002 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Satin Brass |
| Uf-HAMFrameFinish | Satin Brass |
| WEB-InsertType | Switched Socket |
| WEB-NumberofGangs | 2 |
| MainInsertColour | Satin Brass |
| TrimColour | White |
| Last-Updated-At-Hamilton | 02/10/2026 |
| Plate-Finish | Satin Brass Frame/Satin Brass Front |
| Subheader2 | Linea-Tetra CFX Power Sockets |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/dcop/#p=1 |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | L-Tet CFX SB/SB 2g 13A DP Swt Skt SB/WH |
| Height | 91.4mm |
| Width | 150.4mm |
| Depth | 3.8mm |
Download datasheet
