L-Tet CFX RB/RB 1g 13A DP Swt Skt RB/BL

SKU: LTXSS1RBRBB Category:
L-Tet CFX RB/RB 1g 13A DP Swt Skt RB/BL
L-Tet CFX RB/RB 1g 13A DP Swt Skt RB/BL - Image 2
SKU: LTXSS1RBRBB Category:

Type

1 gang 13A Double Pole Switched Socket

Plate Finish

Richmond Bronze Frame/Richmond Bronze Front

Insert Finish

Richmond Bronze/Black

Description

Linea-Tetra CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Double Pole Switched Socket Richmond Bronze/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-021-001
Subheader2

Linea-Tetra CFX Power Sockets
Insert-Type

1 gang 13A Double Pole Switched Socket
Plate-Finish

Richmond Bronze Frame/Richmond Bronze Front
Insert-Colour

Richmond Bronze/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Uf-ItmLabelTechInsert

SS1
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Double Pole Switched Socket Richmond Bronze/Black
PlateFinish

Linea-Tetra CFX Richmond Bronze Frame/Richmond Bronze Front
EAN13-Barcode

5017504122645

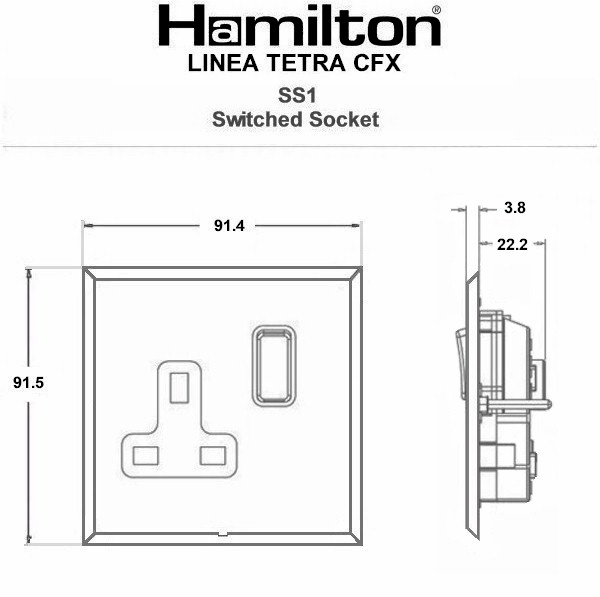

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

13 Amp
Voltage

220/250V AC
Maximum-Load

13 Amp
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Commodity-Code

85366990
Wiring-Image

Dimension-Image

Luckins-TSI

436614196
Tech-Sheet-Page-Footer

LTXSS1RB-RBB – Linea-Tetra CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Double Pole Switched Socket Richmond Bronze/Black
description

L-Tet CFX RB/RB 1g 13A DP Swt Skt RB/BL
product-code

S LT RB-RB
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533440405
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

21
InsertSortOrder

001
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

Richmond Bronze
WEB-InsertType

Switched Socket
WEB-NumberofGangs

1
MainInsertColour

Richmond Bronze
TrimColour

Black
Last-Updated-At-Hamilton

12/05/2025
