L-Tet CFX SN/SS 1g 45A DP+N Red Rkr/WH

SKU: LTX45NSNSSW Category:
L-Tet CFX SN/SS 1g 45A DP+N Red Rkr/WH
L-Tet CFX SN/SS 1g 45A DP+N Red Rkr/WH - Image 2
L-Tet CFX SN/SS 1g 45A DP+N Red Rkr/WH - Image 3
SKU: LTX45NSNSSW Category:

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

Red/White

Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 1 gang 45A Double Pole Red Rocker and Neon Red/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-027-012
Subheader2

Linea-Tetra CFX Range
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Insert-Colour

Red/White
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 1 gang 45A Double Pole Red Rocker and Neon Red/White
PlateFinish

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504124847

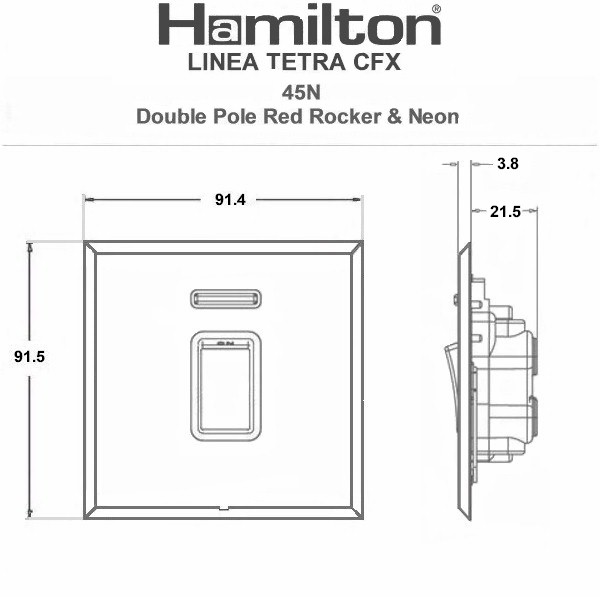

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

45 Amp
Voltage

220/250V AC
Maximum-Load

45 Amp
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Tech-Sheet-Page-Footer

LTX45NSN-SSW – Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 1 gang 45A Double Pole Red Rocker and Neon Red/White
description

L-Tet CFX SN/SS 1g 45A DP+N Red Rkr/WH
product-code

S LT SN-SS
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

006
HAM-SortOrder

027
InsertSortOrder

012
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

White
Last-Updated-At-Hamilton

05/01/26
