Super Stockists

L-Tet CFX SN/SS 1g 20AX Inter Toggle SS

L-Tet CFX SN/SS 1g 20AX Inter Toggle SS
L-Tet CFX SN/SS 1g 20AX Inter Toggle SS - Image 2
L-Tet CFX SN/SS 1g 20AX Inter Toggle SS - Image 3

Type

1 gang 20AX Intermediate FL Dolly

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

Satin Steel

Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Intermediate Toggle Satin Steel

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-016-001
Subheader2

Linea-Tetra CFX Dollies
Insert-Type

1 gang 20AX Intermediate FL Dolly
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Insert-Colour

Satin Steel
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
Uf-ItmLabelTechInsert

T31-FLDLY
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Intermediate Toggle Satin Steel
PlateFinish

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504125554

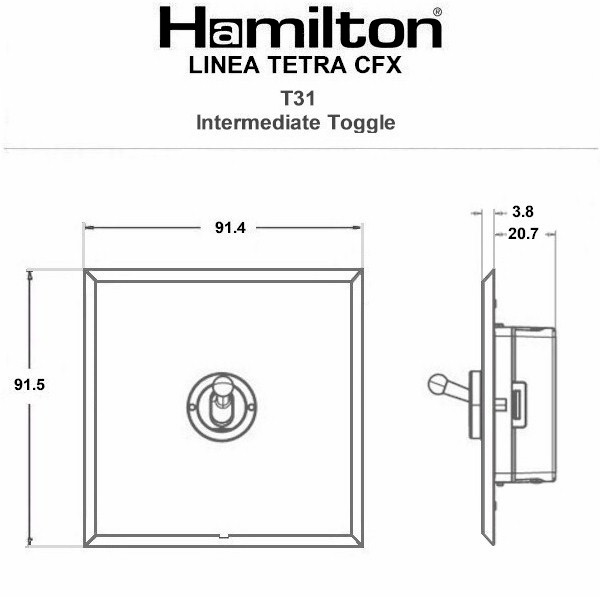

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Tech-Sheet-Page-Footer

LTXT31SN-SS – Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Intermediate Toggle Satin Steel
description

L-Tet CFX SN/SS 1g 20AX Inter Toggle SS
product-code

S LT SN-SS
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

16
InsertSortOrder

001
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

Intermediate
WEB-NumberofGangs

1
MainInsertColour

Satin Steel
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/2026

Download datasheet
