L-Tet CFX SB/SB 3g 20AX 2Way Toggle SB

L-Tet CFX SB/SB 3g 20AX 2Way Toggle SB
L-Tet CFX SB/SB 3g 20AX 2Way Toggle SB - Image 2

Type

3 gang 20AX 2 Way FL Dolly

Plate Finish

Satin Brass Frame/Satin Brass Front

Insert Finish

Satin Brass

Description

Linea-Tetra CFX Satin Brass Frame/Satin Brass Front 3 gang 20AX 2 Way Toggle Satin Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-016-003
Insert-Type

3 gang 20AX 2 Way FL Dolly
Insert-Colour

Satin Brass
Uf-ItmLabelTechInsert

T23-FLDLY
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Satin Brass Frame/Satin Brass Front 3 gang 20AX 2 Way Toggle Satin Brass
PlateFinish

Linea-Tetra CFX Satin Brass Frame/Satin Brass Front
EAN13-Barcode

5017504123123
Dimensions(Nominal)

Double: Height = 91.4mm Width = 150.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

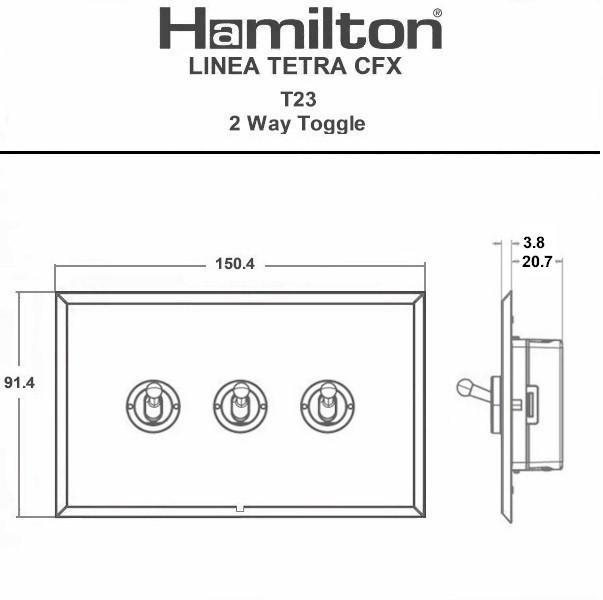

Dimension-Image

Luckins-TSI

436614727
Tech-Sheet-Page-Footer

LTXT23SB-SB – Linea-Tetra CFX Satin Brass Frame/Satin Brass Front 3 gang 20AX 2 Way Toggle Satin Brass
product-code

S LT SB-SB
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533440939
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

16
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Module-Size-Height

53mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

Satin Brass
WEB-InsertType

2 Way
WEB-NumberofGangs

3
MainInsertColour

Satin Brass
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/2026
Plate-Finish

Satin Brass Frame/Satin Brass Front
Subheader2

Linea-Tetra CFX Dollies
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
description

L-Tet CFX SB/SB 3g 20AX 2Way Toggle SB
Height

91.4mm
Width

150.4mm
Depth

3.8mm
