L-Tet CFX BG/BG 1g 20AX Inter Toggle BG

SKU: LTXT31BGBG Category:
L-Tet CFX BG/BG 1g 20AX Inter Toggle BG
L-Tet CFX BG/BG 1g 20AX Inter Toggle BG - Image 2
L-Tet CFX BG/BG 1g 20AX Inter Toggle BG - Image 3
SKU: LTXT31BGBG Category:

Type

1 gang 20AX Intermediate FL Dolly

Plate Finish

Basalt Gray Frame/Basalt Gray Front

Insert Finish

Basalt Gray

Description

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang 20AX Intermediate Toggle Basalt Gray

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-016-001
Insert-Type

1 gang 20AX Intermediate FL Dolly
Insert-Colour

Basalt Gray
Uf-ItmLabelTechInsert

T31-FLDLY
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang 20AX Intermediate Toggle Basalt Gray
PlateFinish

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front
EAN13-Barcode

5017504092962
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

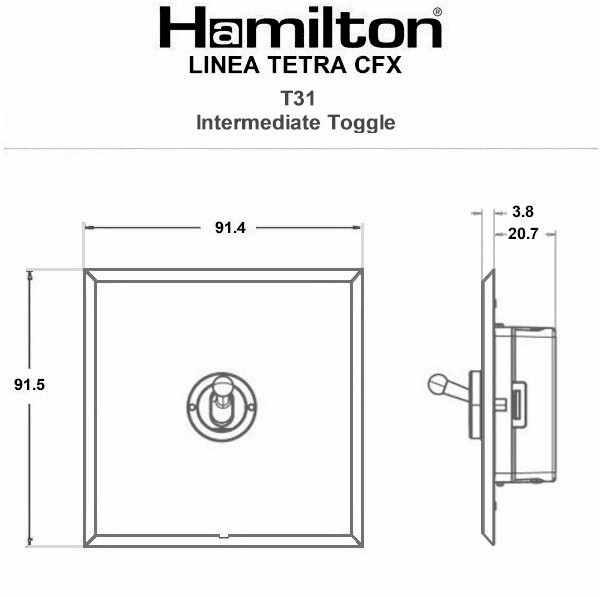

Dimension-Image

Luckins-TSI

436614811
Tech-Sheet-Page-Footer

LTXT31BG-BG – Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang 20AX Intermediate Toggle Basalt Gray
product-code

S LT BG-BG
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533441022
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

5
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

16
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

Basalt Gray
Uf-HAMFrameFinish

Basalt Gray
WEB-InsertType

Intermediate
WEB-NumberofGangs

1
MainInsertColour

Basalt Gray
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Basalt Gray Frame/Basalt Gray Front
Subheader2

Linea-Tetra CFX Dollies
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
description

L-Tet CFX BG/BG 1g 20AX Inter Toggle BG
Height

91.5mm
Width

91.4mm
Depth

3.8mm
