L-Tet CFX SN/SS 2g WIFI SD250MW Dim SS

L-Tet CFX SN/SS 2g WIFI SD250MW Dim SS
L-Tet CFX SN/SS 2g WIFI SD250MW Dim SS - Image 2

Type

1 gang 250W/VA Wi-Fi Rotary Master LED Trailing Edge Dimmer

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

Satin Steel

Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 2 gang 250W/VA Wi-Fi Rotary Master LED Trailing Edge Dimmer Satin Steel

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-006-002
Subheader2

Linea-Tetra CFX LEDSTAT Smart Control
Insert-Type

1 gang 250W/VA Wi-Fi Rotary Master LED Trailing Edge Dimmer
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Insert-Colour

Satin Steel
QR-Instruction

https://online.fliphtml5.com/Hamilton/vmew/#p=1
Uf-ItmLabelTechInsert

2XL-SD250MW
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 2 gang 250W/VA Wi-Fi Rotary Master LED Trailing Edge Dimmer Satin Steel
PlateFinish

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504124595
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Wattage

5-250W/VA
Switched-Poles

Single
Current-Rating

1.1 Amp
Voltage

230V AC
Maximum-Load

250W/VA Trailing 100W/VA Leading
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Frequencies-1

Wi-Fi 2.4GHz
Commodity-Code

85365005
Wiring-Image

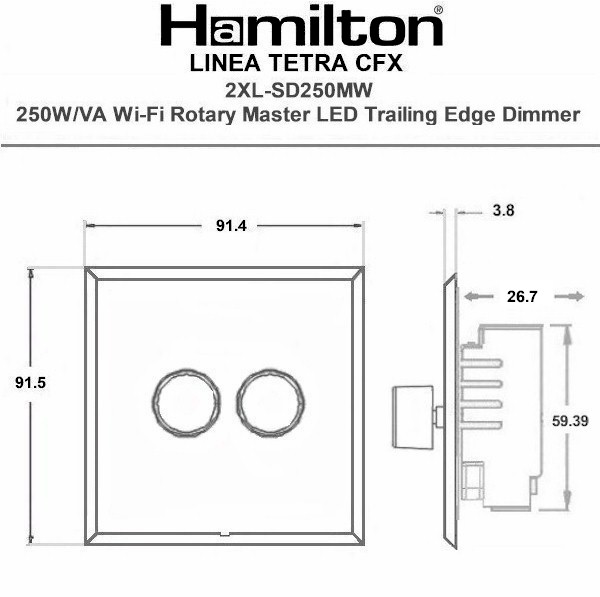

Dimension-Image

Tech-Sheet-Page-Footer

LTX2XL-SD250MWSN-SS – Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front 2 gang 250W/VA Wi-Fi Rotary Master LED Trailing Edge Dimmer Satin Steel
product-code

S LT SN-SS
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

6
InsertSortOrder

002
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Satin Steel
TrimColour

n/a
Last-Updated-At-Hamilton

03/02/2026
