L-Tet CFX MB/MB 2g LEDITB250 2 wy Dim MB

L-Tet CFX MB/MB 2g LEDITB250 2 wy Dim MB
L-Tet CFX MB/MB 2g LEDITB250 2 wy Dim MB - Image 2

Type

2 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Matt Black Frame/Matt Black Front

Insert Finish

Matt Black

Description

Linea-Tetra CFX Matt Black Frame/Matt Black Front 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Matt Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-011-002
Subheader2

Linea-Tetra CFX Dimmers
Insert-Type

2 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Plate-Finish

Matt Black Frame/Matt Black Front
Insert-Colour

Matt Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

2XLEDITB250
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Matt Black Frame/Matt Black Front 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Matt Black
PlateFinish

Linea-Tetra CFX Matt Black Frame/Matt Black Front
EAN13-Barcode

5017504119942
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Wattage

5-210W Per Gang
Switched-Poles

Single
Current-Rating

0.9A Per Gang
Voltage

230V AC
Maximum-Load

5-210W Per Gang
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

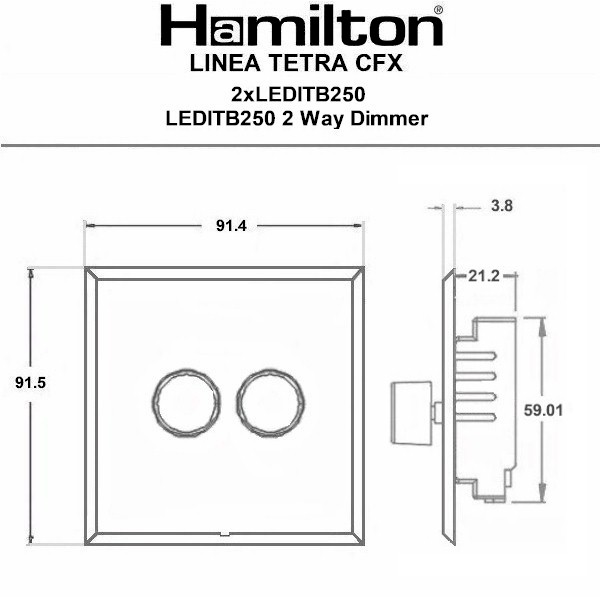

Dimension-Image

Luckins-TSI

436611911
Tech-Sheet-Page-Footer

LTX2XLEDITB250MB-MB – Linea-Tetra CFX Matt Black Frame/Matt Black Front 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Matt Black
description

L-Tet CFX MB/MB 2g LEDITB250 2 wy Dim MB
product-code

S LT MB-MB
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533438129
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

11
InsertSortOrder

002
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

Matt Black
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Matt Black
TrimColour

n/a
Last-Updated-At-Hamilton

12/05/2025
