Description
Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 3g Rotary Companion Controller Basalt Gray
SKU: LTX3XLSDCOMPBGBG
Category: Linea-Tetra CFX Dimmers
Type
3g Rotary Companion ControllerPlate Finish
Basalt Gray Frame/Basalt Gray FrontInsert Finish
Basalt GrayAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Linea-Tetra CFX |
| Page-Sort-Order | 006-007-003 |
| Subheader2 | Linea-Tetra CFX Dimmers |
| Insert-Type | 3g Rotary Companion Controller |
| Plate-Finish | Basalt Gray Frame/Basalt Gray Front |
| Insert-Colour | Basalt Gray |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/vmew/#p=1 |
| Uf-ItmLabelTechInsert | 3XL-SD-COMP |
| Uf-HAM-Plate-Range | Linea-Tetra CFX |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Linea-Tetra CFX |
| Patents-And-Trade-Marks | Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B |
| Item-Long-Description | Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 3g Rotary Companion Controller Basalt Gray |
| PlateFinish | Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front |
| EAN13-Barcode | 5017504124786 |

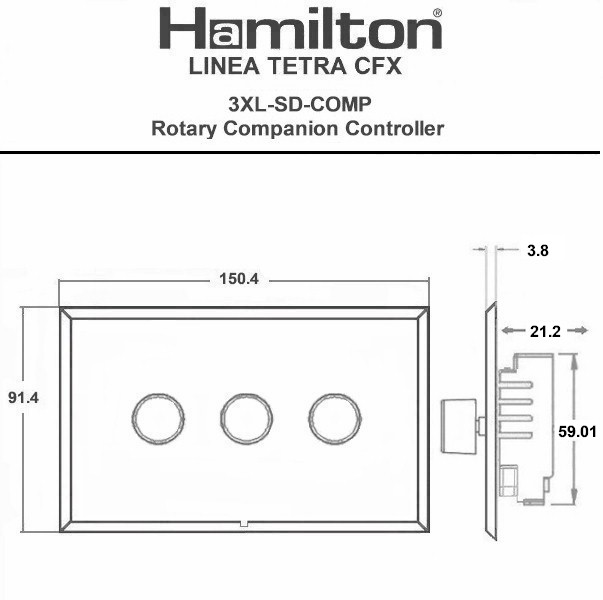

| Dimensions(Nominal) | Double: Height = 91.4mm Width = 150.4mm Depth = 3.8mm |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Wattage | N/A |
| Switched-Poles | Single |
| Current-Rating | n/a |
| Voltage | 230V AC |
| Maximum-Load | N/A |
| Mains-Frequency | 50Hz |
| IP-Rating | IP2XD |
| Terminal-Capacity-1 | 2x1mm² |
| Terminal-Capacity-2 | 2×1.5mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Ambient-Operating-Temperatur | -5°C to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-2-1 |
| Additional-Notes | Can be used with the L-SD250MW, L-SD-INLINE-250W-WIFI or L-INLINE-250W-RF |
| Commodity-Code | 85365080 |
| Wiring-Image | WDSD-CP.jpg |
| Dimension-Image | TD-LTX3XL-SD-COMP.jpg |
| Tech-Sheet-Page-Footer | LTX3XL-SD-COMPBG-BG – Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 3g Rotary Companion Controller Basalt Gray |
| description | L-Tet CFX BG/BG 3g Rotary Compan Cont BG |
| product-code | S LT BG-BG |
| family-code | S TET-CFX |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEUKC.jpg |
| Uf-HAMInnerBoxQty | 1 |
| Uf-OuterBoxQty | 5 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 6 |
| HAM-SortOrder | 7 |
| InsertSortOrder | 003 |
| Generic-Size | Double |
| Height | 91.4mm |
| Width | 150.4mm |
| Depth | 3.8mm |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Basalt Gray |
| Uf-HAMFrameFinish | Basalt Gray |
| WEB-InsertType | Rotary 2 Way |
| WEB-NumberofGangs | 3 |
| MainInsertColour | Basalt Gray |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 21/01/2026 |
