L-Tet CFX BG/BG 1g LEDITB250 2 wy Dim BG

SKU: LTX1XLEDITB250BGBG Category:
L-Tet CFX BG/BG 1g LEDITB250 2 wy Dim BG
L-Tet CFX BG/BG 1g LEDITB250 2 wy Dim BG - Image 2
SKU: LTX1XLEDITB250BGBG Category:

Type

1 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Basalt Gray Frame/Basalt Gray Front

Insert Finish

Basalt Gray

Description

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Basalt Gray

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-011-001
Insert-Type

1 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Basalt Gray
Uf-ItmLabelTechInsert

1XLEDITB250
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Basalt Gray
PlateFinish

Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front
EAN13-Barcode

5017504119607

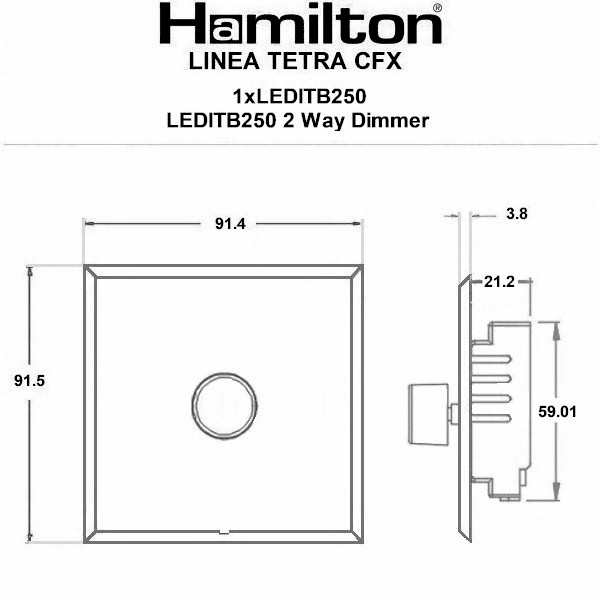

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Single
Current-Rating

1 Amp
Maximum-Load

5-250W
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Dimension-Image

Luckins-TSI

436611623
Tech-Sheet-Page-Footer

LTX1XLEDITB250BG-BG – Linea-Tetra CFX Basalt Gray Frame/Basalt Gray Front 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Basalt Gray
product-code

S LT BG-BG
family-code

S TET-CFX
last-inv

17/02/26
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533437832
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

5
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

006
HAM-SortOrder

011
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Basalt Gray
Uf-HAMFrameFinish

Basalt Gray
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

Basalt Gray
TrimColour

n/a
Last-Updated-At-Hamilton

17/02/26
Wattage

5-250W
Voltage

230V AC
IP-Rating

IP2XD
description

L-Tet CFX BG/BG 1g LEDITB250 2 wy Dim BG
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Plate-Finish

Basalt Gray Frame/Basalt Gray Front
Subheader2

Linea-Tetra CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
