L-Tet CFX SN/SS Single Blank Plate

SKU: LTXBPSSNSS Category:
L-Tet CFX SN/SS Single Blank Plate
L-Tet CFX SN/SS Single Blank Plate - Image 2
SKU: LTXBPSSNSS Category:

Type

Single Blank Plate

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

N/A

Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front Single Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Tetra CFX
Page-Sort-Order

006-036-001
Subheader2

Linea-Tetra CFX Blank Plates
Insert-Type

Single Blank Plate
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPS
Uf-HAM-Plate-Range

Linea-Tetra CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Tetra CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B
Item-Long-Description

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front Single Blank Plate
PlateFinish

Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504125035

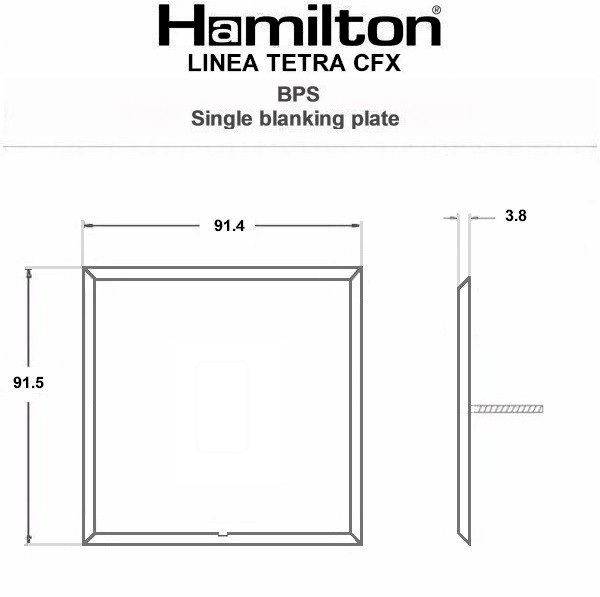

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.4mm Depth = 3.8mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Switched-Poles

N/A
Current-Rating

n/a
IP-Rating

IP2XB
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

85363010
Wiring-Image

Dimension-Image

Tech-Sheet-Page-Footer

LTXBPSSN-SS – Linea-Tetra CFX Satin Nickel Frame/Satin Steel Front Single Blank Plate
description

L-Tet CFX SN/SS Single Blank Plate
product-code

S LT SN-SS
family-code

S TET-CFX
unit-weight

0.00000
weight-units

GR
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

6
HAM-SortOrder

36
InsertSortOrder

001
Generic-Size

Single
Height

91.5mm
Width

91.4mm
Depth

3.8mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

Plate
WEB-NumberofGangs

Single Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

01/05/2026
