Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible)

Plate Finish

Antique Brass Frame/Antique Brass Front

Insert Finish

Black

Description

Linea-Scala CFX Antique Brass Frame/Antique Brass Front Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Scala CFX
Page-Sort-Order

003-031-014
Insert-Type

Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible)
Insert-Colour

Black
Uf-ItmLabelTechInsert

DTRID
Uf-HAM-Plate-Range

Linea-Scala CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Scala CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588
Item-Long-Description

Linea-Scala CFX Antique Brass Frame/Antique Brass Front Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black
PlateFinish

Linea-Scala CFX Antique Brass Frame/Antique Brass Front
EAN13-Barcode

5017504063580
Dimensions(Nominal)

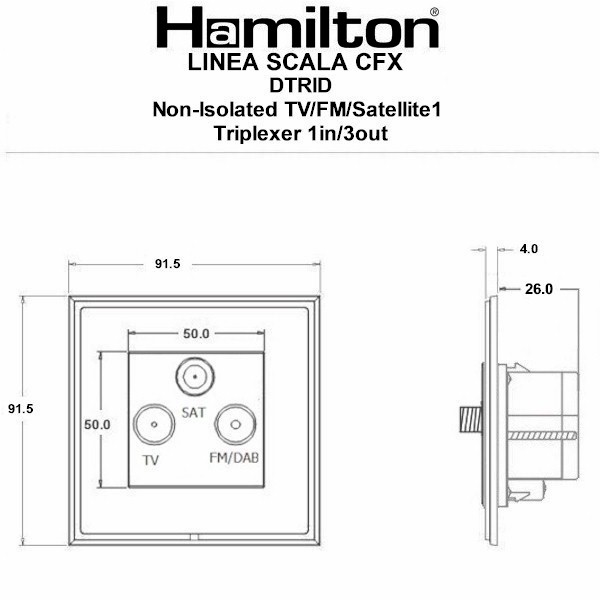

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 50083-2:2012/A1; 2015. BS EN 61169-2:2007. BS EN 61169-24:2009
EuroFix-Additional-Notes

Triplexer for use with combined TV FM and Satellite Signal (DAB compatible)
Frequencies-1

TV=5-68 MHz 125-860 MHz
Frequencies-2

FM=88-108 MHz
Frequencies-3

SAT DC=950-2200 MHz
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391708930
Tech-Sheet-Page-Footer

LSXDTRIDAB-ABB – Linea-Scala CFX Antique Brass Frame/Antique Brass Front Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black
product-code

S LS AB-AB
family-code

S SCA-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533268904
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

3
HAM-SortOrder

31
InsertSortOrder

014
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

TV+FM+SAT
WEB-NumberofGangs

3
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
IP-Rating
