L-Sca CFX AB/AB 1g 20AX Inter Rkr AB/BL

SKU: LSXR312ABABB Category:
L-Sca CFX AB/AB 1g 20AX Inter Rkr AB/BL
L-Sca CFX AB/AB 1g 20AX Inter Rkr AB/BL - Image 2
L-Sca CFX AB/AB 1g 20AX Inter Rkr AB/BL - Image 3
L-Sca CFX AB/AB 1g 20AX Inter Rkr AB/BL - Image 4
SKU: LSXR312ABABB Category:

Type

1 gang FL 20AX Intermediate Rocker

Plate Finish

Antique Brass Frame/Antique Brass Front

Insert Finish

Antique Brass/Black

Description

Linea-Scala CFX Antique Brass Frame/Antique Brass Front 1 gang 20AX Intermediate Rocker Antique Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Scala CFX
Page-Sort-Order

003-001-031
Insert-Type

1 gang FL 20AX Intermediate Rocker
Insert-Colour

Antique Brass/Black
Uf-ItmLabelTechInsert

R312-FL
Uf-HAM-Plate-Range

Linea-Scala CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Scala CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588
Item-Long-Description

Linea-Scala CFX Antique Brass Frame/Antique Brass Front 1 gang 20AX Intermediate Rocker Antique Brass/Black
PlateFinish

Linea-Scala CFX Antique Brass Frame/Antique Brass Front
EAN13-Barcode

5017504682347
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

Item-Image

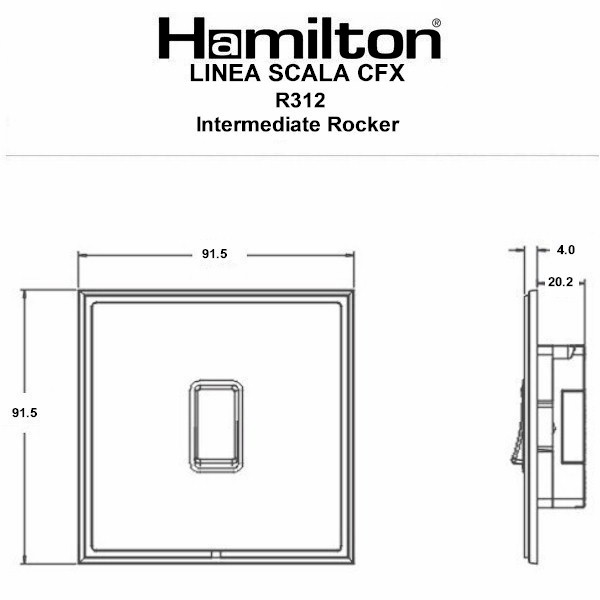

Dimension-Image

Luckins-TSI

391715101
Tech-Sheet-Page-Footer

LSXR312AB-ABB – Linea-Scala CFX Antique Brass Frame/Antique Brass Front 1 gang 20AX Intermediate Rocker Antique Brass/Black
product-code

S LS AB-AB
family-code

S SCA-CFX
last-inv

29/11/2018
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533274846
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

3
HAM-SortOrder

1
InsertSortOrder

031
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

Intermediate
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

Black
Last-Updated-At-Hamilton

16/02/2026
Module-Size-Depth

23mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Antique Brass Frame/Antique Brass Front
Subheader2

Linea-Scala CFX Rocker Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
description

L-Sca CFX AB/AB 1g 20AX Inter Rkr AB/BL
Height

91.5mm
Width

91.5mm
Depth

4.0mm
