L-Sca CFX AB/SB 2g LEDITB250 2 wy Dim AB

SKU: LSX2XLEDITB250ABSB Category:
L-Sca CFX AB/SB 2g LEDITB250 2 wy Dim AB
L-Sca CFX AB/SB 2g LEDITB250 2 wy Dim AB - Image 2
L-Sca CFX AB/SB 2g LEDITB250 2 wy Dim AB - Image 3
SKU: LSX2XLEDITB250ABSB Category:

Type

2 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Antique Brass Frame/Satin Brass Front

Insert Finish

Antique Brass

Description

Linea-Scala CFX Antique Brass Frame/Satin Brass Front 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Antique Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Scala CFX
Page-Sort-Order

003-011-002
Subheader2

Linea-Scala CFX Range
Insert-Type

2 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Plate-Finish

Antique Brass Frame/Satin Brass Front
Insert-Colour

Antique Brass
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

2XLEDITB250
Uf-HAM-Plate-Range

Linea-Scala CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Scala CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588
Item-Long-Description

Linea-Scala CFX Antique Brass Frame/Satin Brass Front 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Antique Brass
PlateFinish

Linea-Scala CFX Antique Brass Frame/Satin Brass Front
EAN13-Barcode

5017504118310

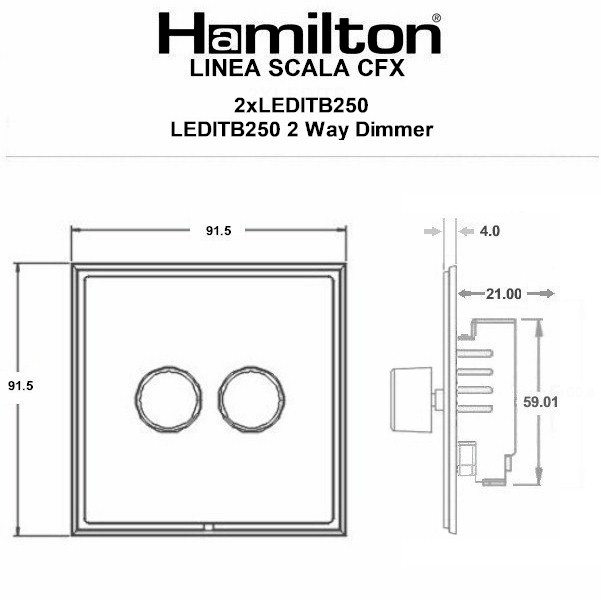

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Wattage

5-210W Per Gang
Switched-Poles

Single
Current-Rating

0.9A Per Gang
Voltage

230V AC
Maximum-Load

5-210W Per Gang
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

436624775
Tech-Sheet-Page-Footer

LSX2XLEDITB250AB-SB – Linea-Scala CFX Antique Brass Frame/Satin Brass Front 2 gang 250W LED 2 Way Push On/Off Rotary Dimmer Antique Brass
description

L-Sca CFX AB/SB 2g LEDITB250 2 wy Dim AB
product-code

S LS AB-SB
family-code

S SCA-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533450987
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

003
HAM-SortOrder

011
InsertSortOrder

002
Generic-Size

Single
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Antique Brass
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
