L-Sca CFX BC/N Double Blank Plate

SKU: LSXBPDBCN Category:
L-Sca CFX BC/N Double Blank Plate
L-Sca CFX BC/N Double Blank Plate - Image 2
L-Sca CFX BC/N Double Blank Plate - Image 3
SKU: LSXBPDBCN Category:

Type

Double Blank Plate

Plate Finish

Bright Chrome Frame/Piano Black Front

Insert Finish

N/A

Description

Linea-Scala CFX Bright Chrome Frame/Piano Black Front Double Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Scala CFX
Page-Sort-Order

003-036-002
Insert-Type

Double Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPD
Uf-HAM-Plate-Range

Linea-Scala CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Scala CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588
Item-Long-Description

Linea-Scala CFX Bright Chrome Frame/Piano Black Front Double Blank Plate
PlateFinish

Linea-Scala CFX Bright Chrome Frame/Piano Black Front
EAN13-Barcode

5017504062859
Dimensions(Nominal)

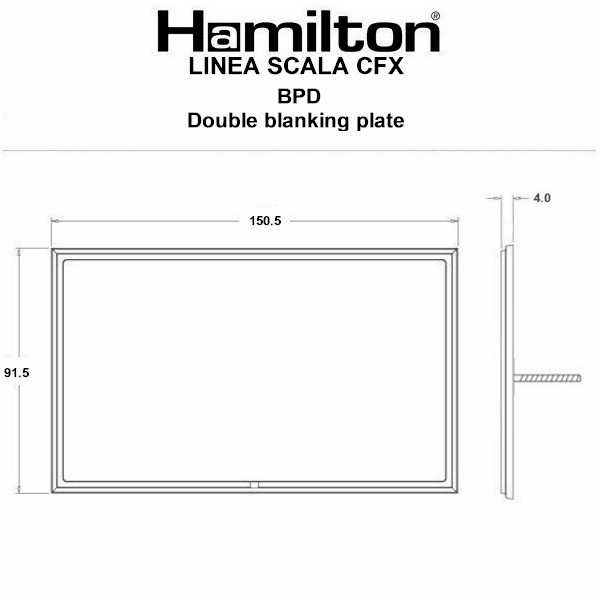

Double: Height = 91.5mm Width = 150.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

398646435
Tech-Sheet-Page-Footer

LSXBPDBC-N – Linea-Scala CFX Bright Chrome Frame/Piano Black Front Double Blank Plate
product-code

S LS BC-N
family-code

S SCA-CFX
last-inv

25/07/2016
unit-weight

330.00000
weight-units

GR
Uf-LuckinsEDP

4533353657
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

3
HAM-SortOrder

36
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Piano Black
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

Plate
WEB-NumberofGangs

Double Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

12/05/2025
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Bright Chrome Frame/Piano Black Front
Subheader2

Linea-Scala CFX Blank Plates
Weight

330 GR
IP-Rating

IP2XB
description

L-Sca CFX BC/N Double Blank Plate
Height

91.5mm
Width

150.5mm
Depth

4.0mm
