L-Ron CFX SN/SS 1g 20AX PTM/PTB Tog SS

L-Ron CFX SN/SS 1g 20AX PTM/PTB Tog SS
L-Ron CFX SN/SS 1g 20AX PTM/PTB Tog SS - Image 2

Type

1 gang 20AX Push To Make/Push To Break Retractive FL Dolly

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

Satin Steel

Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Push To Make Retractive Toggle Satin Steel

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-016-012
Insert-Type

1 gang 20AX Push To Make/Push To Break Retractive FL Dolly
Insert-Colour

Satin Steel
Uf-ItmLabelTechInsert

TRT-DLYFL
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Push To Make Retractive Toggle Satin Steel
PlateFinish

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504127190

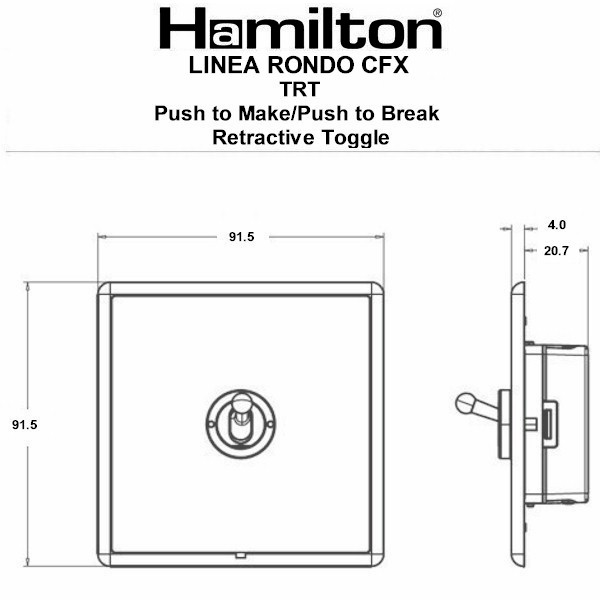

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Single
Current-Rating

20AX
Maximum-Load

20 Amp resistive
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

6x1mm²
Terminal-Capacity-2

5×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm²
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Tech-Sheet-Page-Footer

LRXTRTSN-SS – Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Push To Make Retractive Toggle Satin Steel
product-code

S LR SN-SS
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

16
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

Push To Make Retractive
WEB-NumberofGangs

1
MainInsertColour

Satin Steel
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/2026
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Subheader2

Linea-Rondo CFX Dollies
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX SN/SS 1g 20AX PTM/PTB Tog SS
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Module-Size

Height = 53mm Width = 25mm Depth = 23mm
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
